In critical industrial and infrastructure projects, cable failure isn't just an inconvenience—it's a massive operational and safety risk. When a main power feed goes down unexpectedly, entire facilities grind to a halt. Unarmoured routing often falls short in harsh physical environments. Everyday hazards like heavy impacts, abrasive friction, and rodent damage can easily destroy standard wiring. Properly specified Armoured cables provide the necessary mechanical protection to survive these punishing conditions.
However, specifying the wrong armour type introduces severe thermal and safety risks. For instance, using ferromagnetic armour on a single-core line creates dangerous heating. Making an incorrect choice can literally melt your infrastructure. This guide breaks down the engineering rationale, core differences, and implementation realities of using Aluminum Wire Armour (AWA) and Steel Wire Armour (SWA). You will learn how to evaluate mechanical trade-offs, match armour types to specific core configurations, and ensure reliable, compliant power distribution across complex site installations.
Application Rule: SWA is the industry standard for multi-core cables requiring maximum crush and tensile resistance; AWA is mandatory for single-core setups to prevent dangerous eddy currents.
Thermal Constraints: Upgrading from PVC (70°C) to XLPE (90°C) insulation allows for higher current ratings and extends the operational lifespan of the cable.
Implementation Reality: The superior mechanical strength of armoured cables comes at the cost of weight and flexibility—requiring strict adherence to bending radius limits (10x–15x the cable diameter) and specialized termination glands.
Compliance: Proper grounding (resistance <4Ω) of the metallic armour is non-negotiable, particularly in ATEX-rated explosion-proof environments.
Before selecting specific materials, you must understand the business problem framing. Engineers constantly assess the risk of unscheduled downtime caused by physical cable damage against the upfront investment in ruggedized protection. A severed line from a stray excavator or a short circuit caused by rat damage can halt production for days. Investing in robust physical barriers mitigates these operational risks effectively.
Mechanical Integrity: The metal layer defends against heavy blunt impacts and severe compression. This proves crucial in direct-burial scenarios where soil shifts and vehicles pass overhead. It also handles high tensile loads during difficult pulling operations, preventing the internal copper from stretching.
Environmental & Pest Isolation: Standard plastic sheathing rarely stops determined pests. Metal armour provides a robust, impenetrable barrier against rodents and termites. Furthermore, when combined with specialized outer sheathing, it blocks moisture ingress and resists aggressive hydrocarbon corrosion found in chemical plants.
Despite their superior protection, Armoured cables introduce distinct implementation challenges. You must account for these realities during the design phase.
Increased Weight: Added metallic layers significantly increase the overall weight per meter. This complicates logistics. You need heavier lifting equipment and must carefully evaluate structural load limits in elevated cable tray installations.
Reduced Flexibility: Thick wire armour makes bending difficult. This stiffness increases installation time, especially in confined spaces or tight switchgear cabinets, compared to highly flexible unarmoured alternatives.
Choosing between aluminum and steel is not a matter of quality. It relies entirely on electrical physics and specific mechanical requirements. You must align the material with your core configuration.
Core Characteristic: AWA utilizes aluminum wires. It remains entirely non-magnetic. Furthermore, it weighs approximately 40% less than its steel counterpart, easing overhead installations.
The Single-Core Imperative: You must never use SWA on single-core setups. The alternating current flowing through a single conductor generates a fluctuating magnetic field. If you surround this with iron-based SWA, the changing magnetic field induces eddy currents within the steel. This rapidly leads to massive overheating, melting the insulation, and causing catastrophic failure. AWA's non-magnetic nature completely prevents this phenomenon.
Electromagnetic Compatibility (EMC): Engineers often prefer AWA in sensitive environments. It helps minimize high-frequency signal interference, protecting nearby instrumentation and communication networks.
Core Characteristic: SWA consists of heavily galvanized, ferromagnetic steel wires. It offers maximum physical resilience, far exceeding aluminum in crush and tensile ratings.
Primary Application: This serves as the default standard for multi-core underground and outdoor networks. In a multi-core cable (e.g., three-phase), the magnetic fields generated by the individual cores effectively cancel each other out. Because the net magnetic field approaches zero, eddy currents do not form in the steel armour. Therefore, SWA operates safely without overheating.
Use the chart below to guide your initial material selection based on specific site constraints.
Evaluation Criteria | Aluminum Wire Armour (AWA) | Steel Wire Armour (SWA) |
|---|---|---|
Core Compatibility | Strictly Single-Core | Strictly Multi-Core |
Magnetic Properties | Non-magnetic (No eddy currents) | Ferromagnetic |
Weight Profile | Lightweight (~40% lighter) | Heavyweight |
Mechanical Strength | Moderate crush/tensile resistance | Maximum crush/tensile resistance |
Best Use Cases | High-current single routing, EMC-critical systems, overhead runs | Heavy-duty ducting, direct underground burial, industrial plants |
Understanding how these cables are built helps you specify the correct materials for your environment. We can break down the structural anatomy layer by layer.
Conductor: This is the active current-carrying core. Manufacturers typically use Class 2 stranded copper for rigidity or Class 5 flexible copper. In highly weight-sensitive or budget-constrained projects, aluminum conductors offer a viable alternative.
Insulation (The Limiting Factor): XLPE (Cross-linked Polyethylene) heavily dominates the modern market. It supports a 90°C continuous operating threshold. This allows for higher current ratings compared to older PVC insulation, which safely operates only up to 70°C. XLPE also delivers superior dielectric properties.
Bedding (Inner Sheath): This extruded polymer layer creates a vital protective buffer. It sits between the active insulated cores and the harsh, abrasive metal armour. Without bedding, the internal wires would chafe against the metal and short out during bending.
Armour (AWA/SWA): The robust mechanical defense layer. It absorbs impact, limits stretch, and acts as a grounding path for fault currents.
Outer Sheath: The final environmental barrier. Standard PVC works well for general indoor and outdoor use. PE (Polyethylene) provides exceptional UV and water resistance for direct exposure. LSZH (Low Smoke Zero Halogen) becomes mandatory in enclosed public spaces to meet stringent fire codes, as it releases no toxic gases when burned.

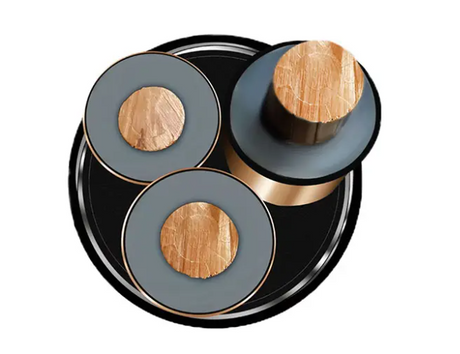

Scaling these fundamental materials up for medium voltage grids requires careful engineering. A high-quality Steel Wire Armored MV Cable applications require much thicker XLPE insulation to prevent high-voltage arcing. Furthermore, they incorporate inner and outer semi-conductive screens. These screens smooth out electrical stresses across the insulation surface. They prevent localized voltage concentrations that could degrade the polymer in substations and heavy industrial environments.
Buying premium materials guarantees nothing if your installation team ignores physical limits. Armoured installations demand precision and adherence to strict mechanical tolerances.
Forcing an armoured cable past its physical limits compromises both the metal armour and the internal insulation. If you bend steel wires too sharply, they separate, exposing the inner bedding. Standard engineering practice dictates strict bending limits. You must maintain a minimum bending radius of 15x the overall cable diameter for SWA. For AWA, which behaves slightly differently, you must maintain a radius of at least 10x the overall diameter.
Common Mistake: Pulling cables tight around right-angle tray corners. Always use wide-radius rollers during the pulling phase to protect the sheath.
Direct burial requires careful site preparation. You cannot simply lay these lines in the dirt. Trenches require a minimum depth, typically greater than 0.7 meters, to avoid standard excavation tools and frost heave. You must lay an appropriate sand bedding beneath and above the cable. This prevents sharp rocks from applying point-load pressure onto the outer sheath. Always place brightly colored warning tape halfway up the trench backfill to mitigate future excavation strikes.
Standard plastic connectors fail entirely when used with heavy armour. Installations mandate specific AWA or SWA cable glands, often machined from heavy-duty brass. These specific glands perform three vital functions. First, they securely grip the metal armour, providing massive strain relief. Second, they terminate the armour to the equipment enclosure. Third, they compress a rubber seal around the outer sheath, maintaining the necessary IP rating against dust and water ingress.
Electrical safety relies entirely on how well you manage the metallic layer. The armour must remain reliably continuous from end to end. You must ground it directly to the system earth, aiming for a target resistance of less than 4Ω. If a mechanical fault breaches the insulation—such as a spike driving through the cable—the live conductor touches the grounded armour. The armour must safely and instantly carry this massive fault current straight to the breaker, tripping it before the cable ignites or electrocutes a worker.
Regulatory compliance dictates material selection in volatile sectors. You must align your specifications with recognized industry standards to ensure legal and operational safety.
In chemical plants, oil refineries, and grain handling facilities, armoured cables prove vital for safety. In these zones, volatile gases or combustible dust suspend in the air. The continuous steel or aluminum sheath prevents internal electrical sparks from igniting external explosive atmospheres. However, you must terminate these lines correctly. This requires ATEX or IECEx-certified explosion-proof glands. These specialized fittings use a compound barrier to seal off all hydrocarbon ingress, ensuring zero gas migration through the cable core into the control room.
Engineers rely on established frameworks to ensure consistent quality. Familiarize yourself with the following baseline standards:
BS 5467: This serves as the global baseline standard for thermosetting insulated, armoured cables. It defines the required thicknesses for XLPE, bedding, and wire gauges for general industrial use.
BS 6724: You must reference this mandatory standard when specifying armoured cables with LSZH sheathing. It outlines strict testing for smoke emission and fire propagation, ensuring enhanced fire safety in enclosed human-occupied areas.
Before issuing any requests for quotation (RFQs), conduct a thorough site audit. First, audit your site's specific mechanical risks, noting vehicle traffic and pest presence. Second, confirm your load requirements to determine if you need single-core (AWA) or multi-core (SWA) routing. Finally, align your outer sheath material with local environmental regulations and indoor fire codes.
Selecting between AWA and SWA does not depend on overall material quality. It relies entirely on electrical physics, specifically whether you run single or multi-core lines, and your mechanical requirements. Remember these crucial implementation steps to ensure long-term reliability:
Never install ferromagnetic SWA on single-core circuits to avoid catastrophic eddy current heating.
Strictly adhere to bending radius limits—15x diameter for steel, 10x for aluminum—to protect the XLPE insulation.
Always utilize proper brass glands to secure the armour, relieve tensile strain, and maintain your enclosure's IP rating.
Verify that your armour ground resistance measures below 4Ω to ensure breakers trip instantly during a fault.
Ultimately, purchasing the highest quality MV cable or low-voltage line will still result in failure if your team ignores bending limits, gland termination procedures, and proper grounding protocols during implementation. Protect your infrastructure by combining correct specification with disciplined installation.
A: A single-core cable carrying alternating current produces a fluctuating magnetic field. If surrounded by ferromagnetic Steel Wire Armour (SWA), this field induces eddy currents within the steel. These stray currents generate massive heat, which rapidly melts the insulation and causes a fire hazard. Aluminum Wire Armour (AWA) is non-magnetic and immune to this effect.
A: STA stands for Steel Tape Armour, which uses thin, overlapping steel layers. It is lighter and primarily offers indoor or fixed protection against rodents and minor impacts. SWA uses thick, solid steel wires, providing vastly superior tensile strength for heavy pulling, direct burial, and rugged outdoor environments.
A: No. AWA and SWA are specifically engineered to withstand harsh environments on their own. Their robust metallic layers make them suitable for direct burial and exposed outdoor runs. Running them inside an extra conduit is generally redundant and complicates installation, unless strictly mandated by hyper-local building codes.
