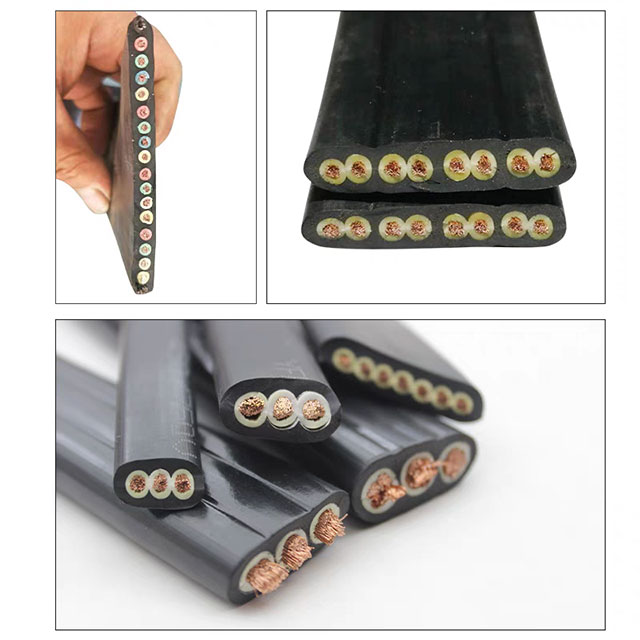

In modern industrial automation, reliable continuous motion is absolutely vital. Cable failure inside a moving carrier remains a leading cause of unplanned downtime today. Operations halt immediately when cables snap. This sudden failure creates massive production bottlenecks across the facility. To prevent this severe disruption, you need a highly specialized electrical component. We call this a drag chain cable. Engineers design it specifically for continuous, repetitive motion. It performs flawlessly without suffering structural degradation over millions of flex cycles. Standard stationary wiring simply cannot survive these relentless mechanical stresses. They fail quickly under continuous dynamic loads. This guide moves beyond standard manufacturer marketing claims. We will provide an engineering-driven framework for specifying the exact wire your application requires. You will learn the hidden mechanics behind physical cable wear. We will also cover essential technical specifications in detail. Furthermore, we will explain critical installation practices thoroughly. By understanding the correct Drag Chain Cable selection process, you can ensure reliable motion control. You will ultimately maximize your overall equipment uptime.
Standard stationary cables fail rapidly in continuous-flex environments due to corkscrewing and internal conductor fatigue; specialized construction is non-negotiable.
Selection hinges on three exact technical parameters: minimum bending radius, maximum travel speed/acceleration, and jacket material chemical resistance.
Proper installation methodology (weight distribution, strain relief) is as critical to lifecycle longevity as the cable specification itself.
High-Flexibility Drag Chain Cable and robotic torsion cables are not interchangeable; linear motion and multi-axis motion require fundamentally different structural designs.
When standard cables bend repeatedly, they face immense and destructive physical stress. The outer radius experiences extremely high tension forces. Simultaneously, the inner radius suffers severe compression forces. This uneven force damages the internal structure rapidly. Copper conductors eventually break under this continuous fatigue. The entire unit then starts corkscrewing visibly. You must use specially engineered cables to prevent this destructive physical cycle.
Structural engineering dictates their mechanical survival. We see distinct differences in three main physical areas.
Stranding: Standard cables use thick, stiff individual strands. They prioritize static conductivity over physical movement. Specialized motion cables rely heavily on ultra-fine wire stranding. This incredibly fine stranding dramatically increases overall physical flexibility. It reduces the mechanical stress placed on any single copper wire.
Core Bundling: Engineers optimize the specific pitch length of the internal cores. They bundle them tightly around a central tensile strength member. This specialized construction prevents internal friction. It stops the cores from rubbing together as the line bends.
Shielding & Taping: Continuous movement quickly destroys standard foil shields. The foil tears under repetitive mechanical strain. Instead, motion lines utilize flexible PTFE tapes. They also incorporate specialized braided shields. These unique materials expand and contract freely. They manage dynamic movement without snapping or losing electrical continuity.
Not all flexible wiring serves the exact same industrial purpose. You must match the physical design strictly to the actual movement profile. Selecting the wrong type guarantees premature mechanical failure.
A High-Flexibility Drag Chain Cable handles strictly continuous, linear bending. It moves exclusively in a predictable U-shaped track. It does not twist. This linear focus makes it the best choice for CNC machines. They also excel daily in massive gantry robots. Automated storage and retrieval systems rely heavily on them.
Robotic or torsion lines serve a fundamentally different function entirely. Engineers design them specifically for 3D, multi-axis twisting. They withstand severe rotational stress constantly. You should never use standard linear designs for 6-axis robotic arms. They will fail quickly under complex rotational torque. The internal structural design differs drastically between twisting and bending applications.
Sometimes, physical space inside a moving carrier is incredibly tight. You cannot fit multiple individual lines safely. In these restrictive cases, you might choose a composite or hybrid Specialty Cable. These advanced designs consolidate power, data, and pneumatics. For example, they combine thick motor power lines with sensitive Ethernet or Profinet data cores. They wrap everything into a single, robust outer jacket. This clever consolidation saves critical physical space. It also significantly reduces the overall weight dragging inside the moving carrier. Lower weight directly translates to less mechanical wear on the entire track system.
Selecting the correct component requires analyzing exact technical data carefully. You cannot guess these operational parameters. An engineering-driven approach prevents costly errors.
First, you must calculate the exact required minimum bending radius. Manufacturers typically define this as 7.5x to 10x the outer diameter. Undersizing the physical track forces the line into unnaturally tight bends. Oversizing it creates similar destructive stress. Both scenarios lead directly to premature physical failure. Always match the track's radius to the documented material limits.
Next, thoroughly evaluate the travel distance and dynamic forces. Short, self-supporting travel differs significantly from long, gliding travel. In short travel, the upper run does not touch the lower run. In long travel, the assembly physically glides on itself. Long gliding applications require much higher external abrasion resistance. You must also frame your specific speed and acceleration limits precisely. High acceleration generates severe tensile forces on the anchoring ends.
Industrial Jacket Material Evaluation Chart
Material Type | Cost Profile | Key Mechanical Characteristics | Best Application Environments |
|---|---|---|---|
PVC (Polyvinyl Chloride) | Low to Moderate | Cost-effective, moderate flex life, basic chemical resistance | Standard indoor environments, packaging lines, basic material handling |
PUR (Polyurethane) | Moderate to High | High abrasion tolerance, excellent oil and coolant resistance | Harsh mechanical areas, machining centers, automotive assembly |
TPE (Thermoplastic Elastomer) | High | Extreme temperature resistance, maximum flex cycle capacity | Heavy-duty industrial setups, extreme cold, intense heat zones |
Finally, strictly scrutinize lifecycle and testing data. Manufacturers often heavily advertise ratings like "5 million cycles." You must deeply understand how they generated this data. They usually test products at very specific ambient temperatures. They also use very specific bend radii in the lab. Real-world conditions often differ vastly from pristine laboratory environments. Always verify if the tested parameters match your actual factory floor conditions exactly.
Even the highest-rated product will fail if you install it incorrectly. Proper methodology actively guarantees lifecycle longevity. You must treat installation as a critical engineering task.
The 10% Clearance Rule: You must maintain proper physical spacing within the carrier. Components require at least 10% free space radially. They also need 10% clearance axially. This critical gap allows them to move freely without binding. It prevents destructive heat buildup during continuous motion.
Payout and Unrolling: Always unroll directly from the spool. Use a proper jack stand. Never pull them over the side flange. Pulling over the flange introduces severe structural torsion. This built-in twist will rapidly destroy the integrity inside the moving chain. It forces the internal cores to migrate unevenly.
Strain Relief Execution: Follow fixed point anchoring rules strictly. You must strain-relieve securely at both ends. Secure them at the moving end. Secure them at the stationary end. However, you must never clamp them anywhere inside the flexing portion of the track. Clamping restricts natural core movement completely.
Weight Distribution: Plan your interior track layout carefully. Place heavier, thick power lines on the outside edges. Route lighter, sensitive data connections through the neutral center. Always utilize smooth interior separators. These physical dividers prevent cross-friction between different jackets. They keep everything aligned during rapid acceleration.
Different industries subject their automation equipment to unique, severe hazards. You must align your material specifications accordingly. A generic approach simply will not work.
In machining and metalworking, aggressive environments are the absolute norm. You should focus heavily on PUR jackets here. They withstand continuous, daily exposure to aggressive cutting fluids. They also resist severe physical damage from sharp, flying metal swarf. PVC jackets usually degrade rapidly when exposed to these synthetic machine oils.
Cleanrooms and semiconductor manufacturing demand strict airborne contamination control. You must carefully evaluate low-shedding materials for these sensitive facilities. Engineers often select specialized PTFE or unique TPE variants. These advanced materials prevent microscopic particulate contamination. They do not shed dust during constant jacket abrasion. This protects highly sensitive silicon wafers from critical manufacturing damage.
Outdoor and heavy equipment face severe elemental extremes constantly. These applications require extremely high UV resistance. They also need robust, impenetrable moisture barriers. Broad temperature tolerance remains absolutely critical for outdoor survival. Ensure your specific selection can survive wild thermal swings. They often must operate reliably from -40°C in winter to +90°C in direct summer sunlight.
Specifying reliable motion wiring requires careful, deliberate engineering thought. It remains a complex balancing act between environmental demands, mechanical physical limits, and project constraints. Standard wiring will never suffice for repetitive linear motion.
Lock in your mechanical layout first. Finalize your chain size and travel distance before ordering any components.
Match your outer jacket material strictly to your actual environmental factory hazards.
Never substitute linear moving designs for multi-axis rotational robotic applications.
Follow the 10% spatial clearance rule strictly during every installation phase.
Consult technical specialists directly to cross-reference cycle requirements with actual application variables before you execute bulk purchasing.
By respecting these structural differences and installation rules, you will extend equipment lifecycles significantly.
A: These terms are simply industry synonyms. They all refer to the exact same physical track system. This mechanical track houses, guides, and protects cables during continuous automation motion. Whether you call it a cable carrier, drag chain, or cat track, its functional purpose remains completely identical.
A: No, you cannot. Standard flexible cables are designed solely for easy routing during a single, stationary installation. They completely lack a continuous flex rating. Without specialized ultra-fine stranding and internal tension members, a standard cable will quickly break under repetitive linear motion.
A: A high-quality line typically delivers between 2 million and 10 million flex cycles. However, this lifespan depends entirely on proper physical installation. You must adhere strictly to the manufacturer's specified minimum bend radius. Operating outside these exact parameters will dramatically reduce the actual cycle count.
A: Corkscrewing is a common physical deformation. It almost always stems from improper mechanical installation. If you unroll the spool incorrectly over the flange, you build severe torsion into the line. It also happens when basic cables lack a centralized tensile member, causing internal core migration.
