Upgrading grid infrastructure or planning a high-capacity industrial feed demands precise voltage classification. Over-specifying limits your available capital. Conversely, under-specifying risks thermal failure and creates severe transmission bottlenecks. You often hear "High Voltage" used as a blanket term across the energy sector. However, the engineering, regulatory, and physical thresholds between standard HV Cable and Extra High Voltage (EHV) cable differ vastly. These distinct categories dictate entirely different procurement and installation pathways. You cannot simply swap one for the other without careful engineering analysis. This comprehensive guide breaks down the structural, operational, and logistical differences between HV and EHV cables. We will explore how they differ in insulation tolerances, conductor design, and ideal application environments. By understanding these core technical distinctions, you can streamline your internal technical evaluations and improve your vendor shortlisting process.
Voltage Thresholds: HV cables generally operate between 35 kV and 150 kV, whereas EHV cables are engineered for 230 kV to 500 kV+ applications.
Insulation Realities: EHV requires ultra-pure XLPE (Cross-Linked Polyethylene) and more complex degassing processes to manage severe dielectric stress.
Deployment Costs: The leap from HV to EHV exponentially increases the cost of civil works, jointing, and terminations, making EHV viable only for bulk, long-distance power transfer.
Compliance: Both classifications require strict adherence to distinct international standards (e.g., IEC 60840 for HV vs. IEC 62067 for EHV).
Engineers categorize power transmission media based on specific voltage ratings. High Voltage (HV) generally encompasses systems operating between 35 kV and 150 kV. Manufacturers test and certify these lines according to rigorous international standards. IEC 60840 represents the primary global standard for HV networks. This framework governs testing protocols for extruded insulation cables up to 150 kV.
Extra High Voltage (EHV) steps into a significantly more demanding tier. These networks operate from 150 kV up to 500 kV and sometimes beyond. They form the backbone of national grids. Because the electrical stresses multiply at these levels, regulatory bodies separate them into their own category. IEC 62067 dictates the manufacturing, testing, and operational parameters for EHV systems. This standard mandates strict pre-qualification tests. Manufacturers must prove long-term reliability under severe thermal and electrical loads before deployment.
You might wonder why we draw such a rigid line between these classifications. This distinction represents far more than a nominal label. Moving from HV to EHV completely changes the engineering physics. Higher voltages dramatically increase dielectric stress on the insulation material. This requires immense dielectric thickness. Furthermore, it demands extreme manufacturing cleanliness. A microscopic impurity harmless in a 66 kV line will cause a catastrophic partial discharge in a 400 kV network. Therefore, the testing protocols shift from standard routine tests to exhaustive, multi-month thermal cycling validations.
You should remain aware of regional variations in terminology. The boundary separating HV and EHV sometimes blurs depending on local grid codes. European standards strongly align with the IEC framework. They neatly draw the line around the 150 kV mark. However, ANSI/IEEE classifications in North America occasionally group anything above 69 kV and up to 230 kV slightly differently. Some utilities casually refer to 138 kV as transmission voltage, blurring the practical line. Always verify the exact system voltage and applicable standard rather than relying purely on the acronym.
Insulation acts as the critical barrier preventing electrical breakdown. A standard HV Cable utilizes conventional Cross-Linked Polyethylene (XLPE) or Ethylene Propylene Rubber (EPR) insulation. Manufacturing these materials requires high cleanliness. Extrusion environments remain strictly controlled. However, the manufacturing tolerances remain relatively standard for typical utility applications.
EHV cables face an entirely different operational reality. They endure extreme electrical stress 24/7. To survive, they require "super-clean" XLPE. Manufacturers produce this insulation inside sealed, pressurized cleanrooms. They utilize advanced triple-extrusion processes. This method simultaneously applies the inner semiconducting layer, the XLPE insulation, and the outer semiconducting layer. This seamless application prevents any microscopic voids. After extrusion, EHV spools undergo prolonged degassing periods. They sit in heated chambers for weeks. This removes volatile cross-linking byproducts like methane. If skipped, trapped gases cause severe water treeing and internal pressure build-up.
Current prefers to travel along the outer edge of a conductor. Engineers call this the "skin effect." In typical HV applications, standard stranded copper or aluminum conductors perform perfectly well. The cross-sectional areas remain manageable.

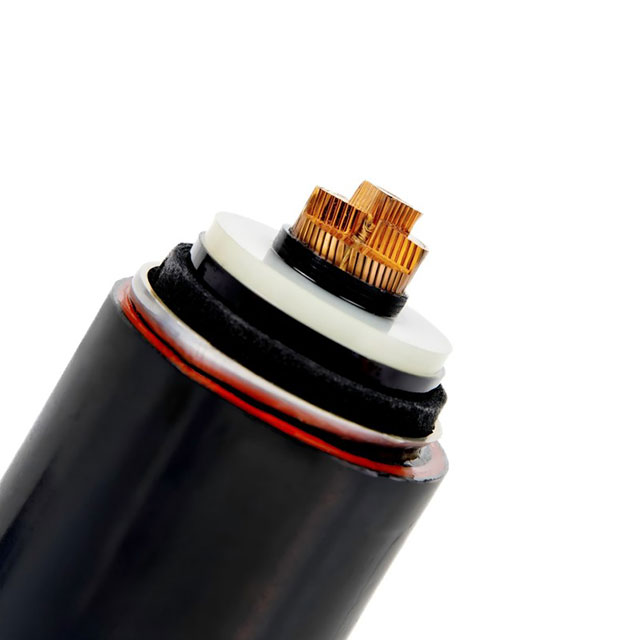

As you transition to EHV, you deal with massive bulk power transfers. The skin effect becomes a severe operational bottleneck. To mitigate this, EHV designs frequently utilize segmented or Milliken conductors. Manufacturers divide the conductor into several insulated segments. They twist these segments together to form the core. This clever geometry forces the current to distribute evenly across the entire cross-sectional area. It drastically optimizes the current carrying capacity and prevents excessive localized heating.
Moisture represents the ultimate enemy of underground power systems. When water penetrates the outer jacket, it degrades the XLPE over time. Both voltage classes employ moisture barriers, but EHV demands robust metallic screens.
EHV networks experience drastically higher short-circuit currents during grid faults. The sheathing must safely carry these fault currents to the ground without melting. Engineers usually specify corrugated aluminum sheaths, heavy extruded lead sheaths, or dense copper wire screens. Lead provides absolute water impermeability. Corrugated aluminum offers a lighter alternative with excellent mechanical protection. HV networks use similar materials but require much thinner metallic layers due to lower fault current ratings.
Chart: Structural Component Comparison
Component | High Voltage (HV) | Extra High Voltage (EHV) |
|---|---|---|
Insulation Type | Standard XLPE or EPR | Super-clean XLPE only |
Manufacturing Method | Standard extrusion | Advanced triple-extrusion in cleanrooms |
Conductor Design | Standard stranded or compact | Segmented (Milliken) conductor design |
Degassing Time | Short to moderate | Prolonged (often weeks) |
Metallic Screen | Standard copper wire or thin tape | Heavy lead or thick corrugated aluminum |
HV systems excel in regional power distribution. They form the critical arteries connecting major substations to localized grids. You will typically see them deployed in the following scenarios:
Sub-transmission networks: They connect main transmission substations to local distribution step-down transformers.
Large-scale commercial feeds: Heavy manufacturing plants, smelting facilities, and large-scale mining operations require dedicated, robust power feeds.
Medium-distance offshore wind: They act as inter-array connections, linking individual wind turbines to the offshore collector substation.
EHV systems handle the massive heavy-lifting of national energy infrastructure. You select EHV when you must move enormous amounts of energy across vast distances. Primary applications include:
National grid interconnectors: They facilitate bulk power transmission between different geographical regions or neighboring countries.
Urban undergrounding projects: Cities increasingly replace unsightly and vulnerable overhead transmission lines with underground EHV circuits to reclaim land.
Long-haul offshore wind export: They connect massive offshore collector substations to the mainland grid, carrying gigawatts of power over long distances.
Distance fundamentally alters your engineering choices. Pushing current through a wire generates heat and transmission losses. EHV systems operate at extreme voltages precisely to mitigate these line losses over long distances. Raising the voltage lowers the current for a given power level. Lower current means significantly lower resistive heating. This makes EHV the only viable choice for bulk transmission. Conversely, HV optimizes localized distribution. It balances manageable installation footprints with adequate power delivery for shorter regional runs.
Installation reality differs sharply between these two voltage classes. HV installations generally allow for standard trenching methodologies. You can often pull them through pre-installed duct banks. The physical footprint remains relatively modest. Civil contractors handle these runs using standard heavy machinery and familiar protocols.
EHV installations demand extensive civil engineering. The physical size and stiffness of the line require massive bending radii. You cannot simply drop them into a narrow trench. Furthermore, heat dissipation becomes a critical engineering challenge. EHV circuits require wider phase spacing. You must bury them in specialized thermal backfill. This engineered soil conducts heat away from the line into the surrounding earth. If the surrounding soil dries out and loses thermal conductivity, the line will quickly overheat and fail. You must conduct comprehensive soil thermal resistivity surveys before breaking ground.
Accessories represent the most vulnerable points in any underground circuit. HV jointing requires skilled labor, but the process remains straightforward for experienced utility teams. Standard prefabricated joints usually suffice.
EHV accessories are highly engineered precision components. Splicing an EHV line resembles a surgical operation. You require pristine, environmentally controlled jointing habitats. Contractors erect sealed tents over the jointing bay to control humidity and dust. A single speck of dust introduces partial discharge. Labor requirements for specialized EHV jointers stand out as a significant project milestone. These certified technicians are rare. You must schedule them months in advance.
Procurement timelines differ dramatically. You can often source standard HV configurations relatively quickly. Multiple global manufacturers maintain steady production lines for common 66 kV or 132 kV ratings.
EHV procurement introduces severe manufacturing bottlenecks. The prolonged degassing times required to stabilize the thick XLPE insulation add weeks to the production schedule. Specialized testing facilities must then subject each batch to rigorous factory acceptance tests. Due to limited global manufacturing capacity, EHV projects face inherently longer procurement lead times. You must factor these manufacturing realities into your master project schedule early.
When engineering a new route, you constantly balance capacity against your physical footprint. You evaluate the trade-off between increasing the voltage to reduce conductor size versus keeping voltage lower but running multiple circuits.
If you lack physical space in an urban utility corridor, stepping up to EHV allows you to deliver massive power through a single trench. However, the wider phase spacing required for EHV heat dissipation might negate some spatial benefits. Alternatively, running two parallel HV circuits offers redundancy. If one circuit fails, the other maintains partial load. You must model both scenarios using specialized route planning software.
Decision Matrix Summary
Project Variable | Favor HV Strategy | Favor EHV Strategy |
|---|---|---|
Distance | Under 50 kilometers | Over 50 kilometers |
Redundancy Preference | High (Multiple parallel circuits) | Low (Single bulk transfer line) |
Corridor Space | Narrow trenches acceptable | Requires wide phase spacing |
You cannot specify a system in a vacuum. Your design must meet local Transmission System Operator (TSO) requirements. TSOs publish strict grid codes dictating reactive power compensation, fault ride-through capabilities, and safety clearances. The capacitance of underground lines generates reactive power. EHV networks generate massive reactive power over long runs. You will likely need to construct costly shunt reactors at the termination points to compensate. Ensure your specified solution fully aligns with your TSO's interconnection agreement.
Procuring these massive systems requires strict vendor auditing. Do not shortlist manufacturers based solely on the lowest upfront quote. You must evaluate their certified testing capabilities. Request their type test certificates from recognized independent laboratories like KEMA. Verify their proven track record with your specific voltage class. A manufacturer excelling at 132 kV might lack the cleanroom infrastructure necessary for a reliable 400 kV delivery. Follow these evaluation steps:
Audit Manufacturing Facilities: Confirm the presence of vertical continuous vulcanization (VCV) lines and cleanroom extrusion environments.
Review Degassing Protocols: Ask for their specific degassing duration calculations for your requested insulation thickness.
Examine Testing Labs: Ensure their in-house testing bay can perform the necessary partial discharge and thermal cycling tests.
Assess Accessory Compatibility: Verify they supply or officially partner with top-tier termination and joint manufacturers.
The choice between HV and EHV classifications requires rigorous technical evaluation. You must base your decision on route distance, required load capacity, and allowable transmission losses. You weigh these operational benefits against the exponential increase in installation complexity, prolonged lead times, and stringent jointing requirements. A localized industrial feed functions perfectly on standard utility-grade infrastructure. Conversely, national interconnectors absolutely demand super-clean, high-capacity designs.
Before issuing a Request for Quotation (RFQ), advise your stakeholders to finalize internal feasibility studies. Conduct a thorough route thermal survey to understand soil resistivity. Run comprehensive system loss calculations to determine if stepping up the voltage provides long-term operational benefits.
Do not navigate this engineering challenge alone. Prompt your project management team to consult with specialized engineering consultants. Request a technical specification review early in your planning phase to ensure your final procurement perfectly matches your operational environment.
A: Yes, but only if the system voltage is stepped down via a transformer. Cable voltage rating must always match or exceed the system operating voltage. If you apply extra-high voltages to standard insulation, you will cause immediate dielectric breakdown and catastrophic failure.
A: When properly specified and installed, both XLPE-insulated HV and EHV cables have a design life of 40 to 50 years. This lifespan depends heavily on maintaining safe thermal operating conditions, avoiding physical damage, and ensuring absolute moisture seal integrity at the joints.
A: The thicker XLPE insulation required for EHV traps methane and other chemical byproducts during the cross-linking process. Extended degassing in heated chambers is mandatory to prevent internal pressure build-up. This ensures long-term insulation integrity and prevents premature failure mechanisms like water treeing.
A: EHV systems require more rigorous predictive maintenance. Utility operators rely heavily on advanced Partial Discharge (PD) monitoring and Distributed Temperature Sensing (DTS) using fiber optics. Because the consequences of failure on a bulk transmission line are severe, continuous real-time monitoring replaces periodic manual inspections.
