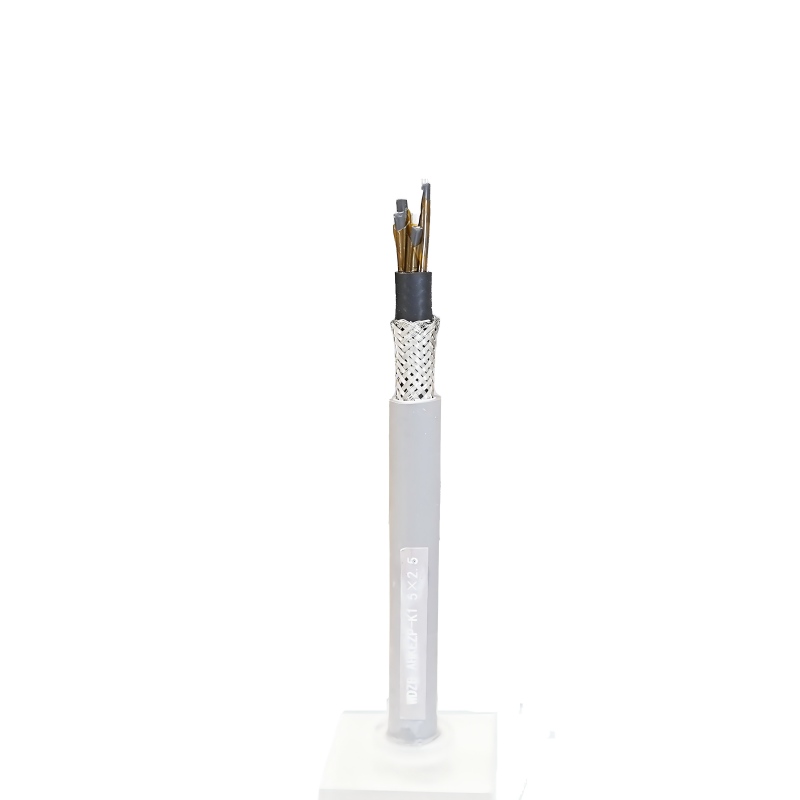

Nuclear Cable Installation: Routing, Separation and Cable Tray Considerations

Nuclear power facilities operate in an unforgiving, zero-tolerance environment. In these critical spaces, failure is simply not an option. Standard industrial cable management systems cannot survive under intense nuclear regulatory scrutiny. They frequently fail against rigorous seismic, thermal, and radiation requirements. Engineers face a constant tension during plant design. They must pack dense electrical infrastructure into highly confined architectural spaces. At the same time, they must maintain strict physical separation for redundant safety trains. Compromising on either front jeopardizes the entire facility. This article provides engineers and procurement teams with a robust evaluation framework. We will guide you through specifying a compliant nuclear cable installation. You will learn how to navigate complex routing constraints effectively. Finally, we will help you select the exact hardware needed to guarantee operational safety.

Key Takeaways

• Compliance Drives Design: Successful nuclear cable installation requires verifiable adherence to strict regulatory standards (e.g., NRC, IEEE, NEMA) from day one.

• Strict Separation is Non-Negotiable: Total physical and electrical isolation between redundant safety divisions and distinct voltage classes prevents cascading failures.

• Tray Sizing Requires Seismic Forecasting: Cable tray selection must account for current dynamic loads, future expansion, and rigorous seismic qualification.

• Accessory Scrutiny Matters: Relying on unverified commercial-grade components for cable clamping or termination compromises the entire system's structural and electrical integrity.

The Regulatory and Environmental Realities of Nuclear Cable Installation

Nuclear plants present uniquely hostile operating environments. Components face continuous radiation exposure over decades of service. They also endure extreme thermal aging from constant ambient heat. Engineers measure this degradation using rigorous Arrhenius thermal modeling. During Design Basis Events (DBEs), environmental conditions deteriorate rapidly. Cables and routing supports encounter harsh chemical sprays, including corrosive boric acid. They must also survive sudden, high-pressure steam releases. Your infrastructure must withstand these severe stressors. It cannot lose structural integrity or electrical continuity during an emergency.

Regulatory compliance demands absolute traceability. The Nuclear Regulatory Commission (NRC) enforces strict Quality Assurance standards. The most critical framework is 10 CFR 50 Appendix B. This regulation governs design control, procurement, and nonconformance reporting. Every single component requires a fully traceable chain of custody. You must provide verifiable test data for each part. Inspectors will aggressively reject any hardware lacking proper documentation. Manufacturers must prove their quality programs govern every manufacturing step.

Many facilities consider Commercial Grade Dedication (CGD). This process upgrades commercial items to nuclear-grade status. Facility operators use CGD to source standard parts quickly. However, CGD carries significant operational risks. The stringent testing procedures introduce severe evaluation bottlenecks. Testers often uncover hidden structural vulnerabilities in commercial steel during seismic qualification. We strongly advocate for natively compliant solutions. Purpose-built nuclear components bypass lengthy CGD delays. They immediately satisfy regulatory bodies. You reduce project timelines by avoiding complex commercial upgrades.

Common mistakes often occur during initial procurement. Buyers sometimes accept commercial certificates of conformance instead of verified test reports. You must always demand specific environmental qualification (EQ) data. Verify the Total Integrated Dose (TID) limits for any non-metallic accessories. Never assume a standard industrial rating equals nuclear readiness.

Establishing Routing Paths and Physical Separation Rules

The safety-train mandate heavily dictates facility layouts. Regulators require independent, physically isolated routing paths. You must separate redundant safety divisions entirely. A catastrophic failure in one train cannot impact another. This isolation prevents cascading plant failures. Fire, localized explosions, or structural collapses must remain contained. Engineers rely on frameworks like IEEE 384 to govern these spatial parameters.

Voltage and signal segregation introduces common engineering pain points. You cannot mix incompatible circuits in the same enclosure. Below are the critical segregation categories you must enforce:

1. Medium-Voltage Power: Isolate these high-energy lines completely. They generate immense heat and pose the highest fire risk.

2. Low-Voltage Power: Route these lines separately from control circuits. They can induce unwanted currents in nearby unshielded wires.

3. Control Cables: Keep these away from power lines to ensure command integrity during relay switching operations.

4. Sensitive Instrumentation: Shield these lines extensively. They are highly susceptible to electromagnetic interference (EMI) and radio frequency interference (RFI).

Spatial constraints often limit ideal physical separation. When you lack adequate distance, you must use engineered barriers. Regulatory standards define acceptable physical distances between trays. For example, open trays require significantly more clearance than enclosed conduits. If trays sit too close, you must install solid, fire-rated barriers. These metal dividers prevent direct fire propagation. They also block electrical arcing between adjacent systems.

You must rigidly secure these barriers. A loose barrier becomes a dangerous projectile during a seismic event. Engineers frequently utilize silicone foam or ceramic blankets to seal penetrations. Best practices require mapping all routing paths in 3D modeling software before pouring concrete. This pre-planning eliminates spatial clashes between redundant divisions early.

Evaluating Cable Tray Systems for Nuclear Facilities

Material and coating selection directly impacts system longevity. Engineers frequently compare stainless steel against coated galvanized options. Stainless steel offers exceptional corrosion and heat resistance. It remains the premium choice for harsh reactor building environments. However, specific galvanized coatings provide viable alternatives for less aggressive areas.

You must mitigate zinc whiskering when using galvanized parts. Zinc whiskers grow on galvanized surfaces over time. They can cause devastating short circuits in sensitive electronics if they break off. You must also prevent galvanic corrosion. Do not mix incompatible metals. If you mount a steel tray to an aluminum support, use isolation hardware.

Load calculations require meticulous attention to detail. You must size trays for standard static cable loads. More importantly, you must respect strict regulatory fill limits defined by the NEC. Overfilled trays restrict critical airflow. This restriction leads to dangerous overheating and accelerated cable degradation. Thermal aging destroys jacket insulation over time. Regulators will heavily penalize any violations of maximum fill ratios. Always leave capacity for future plant expansions.

Seismic qualification separates commercial trays from nuclear-grade systems. Safety-related trays fall under Seismic Category I requirements. You must evaluate their structural integrity under extreme dynamic loads. Trays and supports must maintain their function during an Operating Basis Earthquake (OBE). Furthermore, they must survive a Safe Shutdown Earthquake (SSE). Seismic testing requires complex shaker-table validations. Analytical modeling alone rarely satisfies rigorous NRC inspectors. They demand physical proof of structural damping and resonance frequency resistance.

Table: Cable Tray Material Comparison for Nuclear Environments

Specifying Essential Cable Installation Accessories

System integrity relies heavily on accessories. Many engineers treat accessories as mere afterthoughts. This approach invites disaster. In a nuclear facility, accessories act as critical failure points. A single failing bracket can compromise an entire cable run.

Evaluating the right cable clamp is paramount. You cannot use standard industrial plastic ties. The clamp must feature high short-circuit withstand ratings. Massive electromagnetic forces push cables apart during a fault. The clamp must secure the line without causing jacket deformation. Over-tightening damages internal conductors through cold flow. Ensure the clamp perfectly matches the specific outer diameter (OD) of the nuclear cable. An improper fit leads to vibration-induced abrasion during seismic events.

You must also guarantee secure cable termination. Termination points endure immense electrical stress. Products require verified radiation-resistant insulation. They must provide aggressive environmental sealing against moisture and steam. Cold shrink and heat shrink technologies must pass IEEE 323 environmental qualification. Furthermore, you need verifiable crimp and connection data. Documented pull-tests ensure the termination holds under extreme mechanical strain.

Splicing and hardware components demand equal scrutiny. When shortlisting splice plates, prioritize material traceability. Hold-down clips and expansion joints must withstand constant operational vibration. Expansion joints accommodate thermal expansion during facility heat-up cycles. Rigid systems without expansion joints will warp and buckle under thermal stress. Always specify hardware engineered specifically for dynamic, high-vibration environments.

Implementation Risks and Vendor Shortlisting Logic

Even the best hardware fails under poor installation practices. We see several common installation pitfalls in the field. Contractors often apply excessive pulling tension. This stretches the conductors and permanently thins the insulation. Workers also frequently violate minimum bend radii. Bending cables too sharply creates micro-fractures in the outer jacket. Moisture easily penetrates these tiny cracks during a steam release.

Furthermore, unauthorized field modifications pose severe risks. Installers must never alter structural supports without direct engineering approval. Drilling extra holes in a tray voids the seismic qualification immediately. Installers must use precise torque wrenches for every bolt. Over-torquing strips threads, while under-torquing invites vibration loosening.

You must deploy a rigorous vendor evaluation matrix. Selecting suppliers for cable installation accessories requires deep vetting. Demand a documented history of nuclear-specific QA programs. The vendor must operate under audited Appendix B, NQA-1, or equivalent international standards. Next, verify the availability of certified test reports. They must produce actual laboratory data for seismic, thermal, and radiation testing.

Finally, assess their capacity for custom engineering. Standard catalog parts rarely solve specific routing bottlenecks in tight reactor spaces. You need a partner who can engineer custom structural solutions quickly. We recommend specific next-step actions for procurement teams. First, request full documentation packages before writing any purchase orders. Review their certificates of conformance thoroughly. Second, engage in pre-installation engineering reviews. Bring short-listed vendors into your design discussions early. Their specialized expertise will highlight routing conflicts before construction begins.

Conclusion

Successful nuclear infrastructure routing requires exceptional precision. It balances rigorous physical separation codes with complex architectural realities. You must heavily scrutinize every tray and accessory. Overlooking minor components inevitably leads to major regulatory failures and costly rework.

Evaluating installation components through a lens of verifiable data is essential. Strict compliance reduces your long-term operational risk. It ensures your facility survives both daily operations and unexpected seismic or thermal disasters. Proactive engineering prevents cascading failures.

We encourage you to take immediate action on your upcoming projects. Request specialized product catalogs to review qualified hardware options. Secure all necessary material test reports upfront. Finally, contact our engineering support team today for sizing, dynamic load calculations, and separation verification.

FAQ

Q: Can instrumentation and power cables share the same cable tray in a nuclear facility?

A: Generally, no. Strict code restrictions prohibit mixing these cables to prevent electromagnetic interference (EMI). While specialized, compliant metal dividers exist for shared trays, complete physical separation in distinct trays remains the heavily preferred industry standard to ensure safety-train isolation.

Q: What documentation is required for nuclear cable installation accessories?

A: You must obtain rigorous documentation for every component. This includes Certificates of Conformance (CoC), certified Material Test Reports (MTRs), and comprehensive Environmental Qualification (EQ) data. Regulators also require seismic test reports to prove structural integrity under dynamic loads.

Q: How does seismic activity impact cable tray routing and support spacing?

A: Seismic dynamic loads dictate significantly tighter support spacing compared to commercial installations. You must use heavier gauge materials and specialized cross-bracing. Engineers calculate exact span distances using response spectra data to prevent structural resonance and collapse during an earthquake.

Q: What are the limits on cable tray fill ratios for nuclear applications?

A: Fill ratios are strictly governed by NEC and IEEE guidelines based on the specific cable type. Power cables face lower fill limits than control cables to ensure proper heat dissipation. Violating these ratios traps heat, leading to accelerated thermal aging and insulation failure.
