In modern infrastructure and public facilities, control cables play a critical role in enabling communication between systems. They are often assumed to only carry signals, but a pressing question remains: can control cables also carry electrical power? This article explores the technical feasibility, advantages, limitations, and practical applications of using control cables to transmit both power and signals within infrastructure projects.

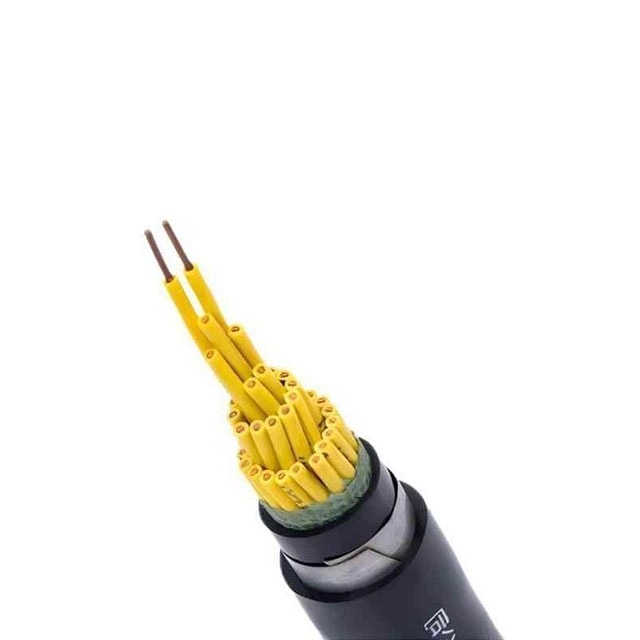

Control cables are multi-core cables designed primarily to transmit signals for monitoring and control purposes. They are common in automated facilities, transport systems, and power distribution plants. These cables usually consist of insulated copper conductors bundled together, allowing them to carry low-voltage signals reliably while resisting interference.
Traditionally, control cables are engineered to send commands or relay status updates. For instance, in a water treatment plant, sensors use control cables to report flow rates or valve positions back to the control center. This signal function requires stability, shielding, and low resistance to avoid data loss.
Yes—under the right conditions, control cables can also carry low to moderate levels of electrical power in addition to signals. This makes them versatile, especially in settings where installing separate power and signal wiring would be costly or impractical. However, design considerations such as conductor size, voltage rating, and thermal limits dictate whether this is a safe and efficient option.
The ability of a control cable to carry power depends on conductor cross-sectional area. A thicker conductor allows for more current without overheating. For example, a 2.5 mm² copper core can safely transmit both control signals and low-voltage power for actuators or relays.
Insulation determines whether a cable can handle both signal integrity and electrical load. Most control cables are rated between 300V and 600V, sufficient for low-power devices like sensors or control panels. High-voltage applications, however, require dedicated power cables with stronger insulation.
When power and signal share the same cable, heat generation and EMI become concerns. Excessive current can raise temperatures, potentially degrading insulation. Similarly, power transmission may introduce noise into sensitive signal wires, reducing communication accuracy. Shielding and pair twisting are often applied to minimize this.
In smart buildings, control cables often carry both data and power to devices like HVAC controllers, fire alarms, and access systems. Combining both reduces installation complexity while ensuring reliable performance.
Railway signaling, traffic lights, and tunnel lighting systems frequently use control cables for integrated power and signal delivery. This enables synchronized operation between controllers and equipment across long distances.
Control cables in power distribution plants often power actuators while simultaneously carrying monitoring signals to the control room. This dual-use supports efficiency and reduces the footprint of cable runs across large facilities.
Using one control cable instead of separate wiring for power and signals lowers material and labor costs, especially in large-scale infrastructure.
Cable trays and conduits have limited capacity. Combining power and signal lines in control cables reduces congestion, ensuring easier maintenance.
Having both power and signal lines integrated into one cable simplifies design schematics and speeds up troubleshooting when issues occur.
Table 1: Benefits of Dual-Purpose Control Cables
| Benefit | Impact on Infrastructure |
|---|---|
| Lower costs | Fewer materials and reduced labor time |
| Space optimization | Less congestion in cable trays |
| Simpler maintenance | Easier identification and repairs |
Control cables are not designed for high loads. They can safely carry small motors, actuators, or lighting circuits, but cannot handle heavy industrial equipment.
Signals may become corrupted if not properly shielded. In infrastructure systems requiring high reliability, interference could result in equipment malfunction or safety risks.
Electrical codes and standards may restrict when and how control cables can carry power. Compliance with IEC, NEC, or local standards is mandatory to avoid hazards.
Table 2: Risks of Dual-Purpose Control Cables
| Limitation | Potential Impact |
| Low power rating | Inadequate for large equipment |
| EMI interference | Signal corruption, communication failure |
| Safety regulations | Non-compliance risks fines or accidents |
Engineers must choose control cables based on conductor size, shielding quality, and voltage rating to ensure safe dual-purpose use.
Segregating high-current circuits from sensitive signal pairs within the same cable, or using shielded conductors, minimizes interference.
Cables should be selected with an eye toward durability in harsh environments, including resistance to moisture, chemicals, or UV exposure in outdoor facilities.
The most conservative approach is to use different cables for power and control signals. This ensures no interference and higher power capacity but requires more space and cost.
Hybrid designs explicitly combine signal and power cores with enhanced shielding and insulation. They are engineered for dual use and are safer than adapting standard control cables.
For infrastructure relying on IP-based systems, PoE provides both power and communication through Ethernet cables. This is widely used in smart lighting and surveillance networks.
Advances in EMI shielding will allow safer transmission of both power and signals in a single cable, even in noisy industrial environments.
In solar farms and wind plants, control cables may evolve to deliver both control signals and low-voltage power to inverters, sensors, and tracking systems.
As IoT adoption grows, cables must support dual roles to connect devices efficiently. Future control cable designs may include embedded intelligence for diagnostics and performance monitoring.
So, can control cables carry power as well as signals? The answer is yes—but with important caveats. Control cables are best suited for transmitting both power and signals in low-to-moderate load applications, particularly within infrastructure and public facilities. Engineers must carefully evaluate conductor size, shielding, compliance standards, and long-term reliability before adopting them in critical systems. Used properly, dual-purpose control cables offer cost savings, space efficiency, and simplified designs, making them an increasingly attractive choice for modern infrastructure projects.
1. What is the maximum power a control cable can carry?
The maximum power depends on the conductor size and insulation rating. Generally, control cables can handle small motors, relays, or sensors, but they are not intended for heavy industrial equipment.
2. Is it safe to use control cables for both power and signals?
Yes, if installed correctly and within rated limits. Proper shielding, conductor sizing, and compliance with electrical standards are essential to ensure safety and reliability.
3. What industries use control cables for power and signals?
Industries such as building automation, transportation, utilities, and renewable energy frequently use control cables in dual-purpose roles.
4. How do hybrid cables differ from control cables?
Hybrid cables are specifically designed to carry both power and signals with enhanced insulation and shielding. Standard control cables can serve a similar function but may not always provide the same safety margin.
5. Can control cables replace dedicated power cables?
Not entirely. Control cables can supplement power delivery for low-power applications but cannot replace dedicated power cables in high-demand systems like heavy machinery or high-voltage distribution.
