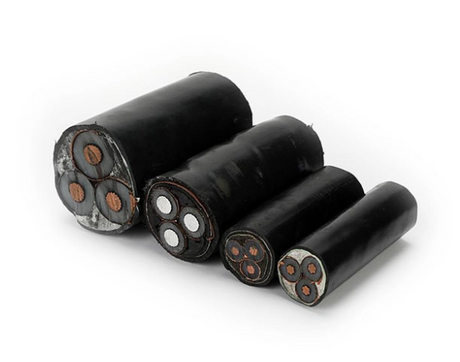

You use an xlpe mv cable when you want safe power. It helps move electricity in medium voltage systems. XLPE means cross-linked polyethylene. MV stands for medium voltage. XLPE insulation keeps the cable safe from heat. It also protects from chemicals and stress. This insulation lowers the chance of electrical problems. Most xlpe insulated mv cables work with voltages like 5kV, 15kV, 25kV, and 35kV. You see these cables in factories, offices, and homes. XLPE insulation helps your electrical system stay strong and safe.
Common voltage ratings for xlpe mv cable:
5kV
15kV
25kV
35kV
XLPE MV cables give safe power to medium voltage systems. The usual ratings are 5kV, 15kV, 25kV, and 35kV. XLPE insulation works well with heat and electricity. It lets cables work safely up to 90°C. In emergencies, they can handle 105°C. These cables do not break easily. They also resist chemicals. This makes them good for hard places like factories and outside areas. XLPE MV cables last a long time. They can last 40 to 60 years if used normally. This helps save money on repairs. Picking the right XLPE cable is important. You need to think about voltage ratings. You should look at where you will put the cable. Make sure it follows safety rules for best results.
Cables need to handle heat and electricity safely. XLPE insulation gives strong protection for both. When you use an xlpe mv cable, it works well in hot places. The insulation lets the cable work at 90°C most of the time. In emergencies, it can handle 105°C for up to 72 hours. Here is a table that shows the temperature limits:
Condition | Maximum Temperature |
|---|---|
Normal Continuous Load | 90 °C |
Emergency Conditions | 105 °C (up to 72 hours) |
XLPE insulation also helps with electrical safety. The cross-linked polyethylene structure stops electrical breakdown. This means you lose less power and get steady electricity. XLPE insulation keeps your system safer than other materials. You can trust xlpe insulated mv cable for power and tough jobs.
Tip: XLPE insulation is better than PVC and PE in medium-voltage cables. It can take more heat and saves energy, so your system works well.
Cables need to last in hard places. XLPE insulation gives strong mechanical strength. The cable can be pulled and bent during setup. It also does not get damaged by cuts or scrapes. Here are some important mechanical properties:
Property | Value |
|---|---|
Tensile strength | min. 12.5 N/mm² |
Breaking strength | min. 200% |
XLPE insulation also keeps your cable safe from chemicals. In factories, there are oils, acids, and alkalis. XLPE resists these, so the cable does not crack or get soft. It also does not take in much water, which keeps the cable strong. You can use xlpe mv cable in rough places and know it will work.
You want your electrical system to be safe and last long. XLPE insulation helps with both. The insulation does not burn fast and slows fire spread. New xlpe insulated cables have special things added to make them even safer from fire. This gives extra safety if something goes wrong.
XLPE insulation also makes your cable last many years. At 90°C, an xlpe insulated mv cable can last 40 to 60 years. If you use it at higher heat, it will not last as long, but still works for years. Here are the usual lifespans:
40 to 60 years at 90°C
7 to 30 years at 95 to 105°C
New technology gives more benefits. Some xlpe insulation uses nanocomposites to make cables more reliable and lower the chance of problems. These new ideas help your cable last longer and work better in all kinds of mv jobs.
Note: XLPE insulation has many good points, but recycling is hard. Most old xlpe goes to landfills. New ways to recycle are being made to fix this.
When you pick xlpe insulated mv cable, you get strong heat and electrical safety, high resistance to damage and chemicals, and a long, safe life. These features make xlpe insulation the best choice for medium-voltage cables in power, factories, and other important uses.
XLPE insulation works better than PVC in many ways. XLPE gives more protection for medium-voltage cable. PVC is good for low-voltage jobs, but it cannot take high heat or strong electricity. You want your cable to last and keep things safe. XLPE lets cables work in hotter places and gives steady power.
Insulation Material | Dielectric Strength | Performance Characteristics |
|---|---|---|
PVC | Moderate | Good for low-voltage uses |
XLPE | Superior | Stays strong with high voltage, resists electrical treeing, great for high-voltage power and long distances |
PVC can break down faster if it gets too hot or stressed. XLPE keeps cables safe in hard places. XLPE is better for mv and medium-voltage jobs.
Some cables use PE insulation. PE means polyethylene. It has good electrical features and works for some mv jobs. But XLPE gives even more benefits. The cross-linked part in XLPE makes it stronger and more stable. It stops electrical treeing, so there are fewer problems later. XLPE is good for long distances and tough jobs.
Insulation Material | Dielectric Strength | Performance Characteristics |
|---|---|---|
PE | Excellent | Low loss, good for medium voltage |
XLPE | Superior | Stays strong with high voltage, resists electrical treeing, great for high-voltage power and long distances |
PE works well, but XLPE gives more safety and longer life. XLPE protects your electrical system better.
XLPE insulated mv cable gives many good things for your power system. XLPE lets cables handle voltages from 600V to 35kV. You get strong protection from damage, even underground or in bad weather. The cable works in high heat and lets wires run hotter safely. It also lowers the chance of short circuits and overloads.
Advantage | Description |
|---|---|
Voltage Range | Works from 600V to 35kV, better than PVC and EPR. |
Mechanical Protection | Gives strong protection from damage. |
Extreme Pressure Resistance | Handles high pressure without breaking. |
Underground Damage Resistance | Stays safe when put underground. |
Weather Resistance | Works well in all kinds of weather. |
Thermal Resistance | Keeps working in high heat. |
High Conductor Operating Temperatures | Lets wires run at higher temperatures. |
Reduced Short Circuit Levels | Lowers risk of short circuits and overloads. |
Cost Effectiveness | Saves money compared to old insulation. |
Flexibility | Easy to bend and install. |
Moisture Resistance | Keeps water out, so it lasts longer. |
You also save money over time with XLPE mv cable. The total cost is lower than many other types. If you use it for 50 years, you can save almost 10% compared to overhead lines. This makes XLPE insulated cables a smart pick for long projects.
Tip: XLPE insulation gives strong safety, long cable life, and lower costs. You get steady power for all your mv jobs.
You often see xlpe mv cable in power networks. These cables bring electricity from substations to homes and schools. They also go to businesses. The cross-linked polyethylene insulation lets the cable handle more heat. It also keeps electricity flowing safely. You get steady power even if the weather changes. XLPE insulated mv cable helps keep your lights on. It also keeps your devices working. The insulation protects the wires inside from getting hurt. This keeps the whole system safe. You can count on these cables for medium-voltage power in cities and towns.
Factories and big buildings need strong cables for heavy jobs. XLPE insulation gives you safety and makes the cable last longer. You find xlpe insulated cables in many types of industries. Here is a table that shows where you use them and what each place needs:
Industrial Sector | Specific Requirements |
|---|---|
Manufacturing | Reliable power for heavy machinery and industrial equipment. |
Chemical and Petrochemical | Resistance to chemicals and harsh conditions for essential processes. |
Renewable Energy Projects | Connection of wind turbines to the electrical grid for power transmission. |
Solar Installations | Transmission of electricity from solar panels to the grid. |
Utility Substations | Interconnection of power generation stations for electricity transmission. |
Distribution Networks | Backbone for distributing power from substations to various areas. |
Mining Operations | Robust construction to withstand challenging underground conditions. |
Transportation Infrastructure | Power for railway electrification systems and associated infrastructure. |
Airports | Power for lighting, communication systems, and baggage handling. |
Data Centers | Stable power supply for servers and critical IT infrastructure. |
Water Treatment Plants | Power for pumps and filtration systems in water treatment processes. |
You need cables that last and work in tough places. XLPE insulation stands up to chemicals, heat, and stress. You get the main benefits of xlpe cables in every industry.
You help the Earth when you use renewable energy. XLPE insulated mv cable is important in wind and solar farms. These cables connect wind turbines and solar panels to the grid. The insulation lets the cable handle high voltage and bad weather. You get strong performance in both land and sea wind farms. The cable does not get damaged by sunlight, water, or temperature changes. Here are some ways you use xlpe cables in renewable energy:
You use xlpe cables to move power from wind turbines in hard places.
You trust these cables to keep solar energy systems safe and working.
You count on the insulation to protect the cable in tough weather.
XLPE insulation helps your medium-voltage power cables last a long time. You get a strong material for all your energy needs. When you follow the rules for picking xlpe insulated cables, your renewable projects are safer and work better.
Tip: Always check the rules for picking xlpe insulated cables. This helps you match your project’s needs and get the most benefits.
When you pick an xlpe insulated cable, you need to make sure it fits your project. The right cable gives you the most benefits and keeps everything safe. You can use this checklist to help you choose:
Look at the voltage rating for your mv system.
Choose the best conductor material.
Think about where you will put the cable.
Make sure the cable follows important rules.
You have to pick a cable that matches your system’s voltage. For mv jobs, common ratings are 5kV, 15kV, 25kV, and 35kV. Always check what voltage and current your project needs. The conductor material is important too. You can pick copper or aluminum. Copper lets electricity flow better and is strong. Aluminum is lighter and costs less for the same amount of power.
Conductor Material | Advantages |
|---|---|
Copper | Higher electrical conductivity, smaller cross-sectional area, strong |
Aluminum | Lighter, lower cost per amp, easy to handle |
Tip: Ask an engineer before you decide. Not all 15kV cables are the same. The right conductor and voltage rating help you get the most from xlpe insulation.
You need to think about where you will use the cable. Outside, there is rain, snow, and sunlight. Moisture can hurt the cable, so moisture resistance is important. UV protection keeps the insulation safe from the sun. XLPE insulation stops water and UV rays, so it works well outside. In places with chemicals or salt, you need chemical resistance. Strong mechanical strength helps the cable last in tough spots. If you use the cable for transmission or in bad weather, these features protect your system.
XLPE insulation is resistant to moisture.
XLPE insulation is resistant to UV radiation.
You should always check if your cable follows the main rules. These rules make sure the cable is safe and works well for mv jobs. Here are some important rules:
Standard | Description |
|---|---|
IEC 60502-2 | International standard for medium voltage cables |
ICEA S-93-639 | Standard for insulated power cables |
ICEA S-94-649 | Standard for medium voltage cables |
BS 6622 | British standard for power cables |
GB/T 12706 | Chinese standard for medium and high-voltage cables |
Note: If your cable follows these rules, you get more benefits. You get better safety, longer life, and strong performance everywhere.
If you follow these steps, you will pick the right xlpe insulated cable for your mv job. You get all the good things from xlpe insulation, strong electrical safety, and steady power for every project.
You get lots of good things when you pick XLPE insulated MV cables. These cables work well with heat and electricity. They are also very strong and do not break easily. XLPE cables can fight off water treeing and chemicals. You save money because these cables last a long time. You do not need to fix them often.
Aspect | Benefit |
|---|---|
Durability | Lasts longer, so you do not replace it much |
Maintenance | Needs fewer repairs, so you spend less money |
Installation | Easy to move and put in, saves time |
To get the best results, do these things: First, look at your site and where the cable will go. Next, choose a cable that fits your voltage and current. Check the cables before and after you put them in. Use the right way to install and test your system. Make a plan to check and take care of the cables often.
Remember: Always pick a cable that fits your project. Do not make mistakes like choosing the wrong size or forgetting about where you put the cable. This keeps your electrical system safe and working well.
XLPE stands for cross-linked polyethylene. You get strong insulation that resists heat, chemicals, and stress. This material helps your cable last longer and keeps your electrical system safe.
Yes, you can use XLPE MV cables outside. The insulation resists moisture, sunlight, and temperature changes. You get reliable performance in rain, snow, or heat.
You can expect XLPE MV cables to last 40 to 60 years at normal temperatures. The cable stays strong and safe for many years, so you do not need to replace it often.
XLPE MV cables work well underground. The insulation protects against water, chemicals, and pressure. You get safe power delivery even in tough soil or wet conditions.
