Ever wonder how electricity travels safely in large buildings and factories? MV Power Cable plays a key role in this process. It carries medium voltage electricity, bridging low and high voltage systems.
In this post, you’ll learn what MV Power Cable is, why it’s important, and how it fits into electrical classifications like LV and HV.
Medium Voltage (MV) power cables play a vital role in various sectors by efficiently transmitting electricity at voltages typically ranging from 1kV to 35kV. Their robust design and adaptability make them suitable for many industrial, commercial, and infrastructure applications.
MV cables are widely used in industrial plants to power heavy machinery and equipment. Factories rely on these cables to ensure a stable and safe power supply that supports continuous operations. Commercial buildings like office complexes and shopping centers also use MV cables to distribute electricity efficiently across multiple floors and large areas. Their durability and safety features make them ideal for these high-demand settings.
Renewable energy projects depend heavily on MV cables. Solar photovoltaic (PV) plants use these cables to connect solar panels to inverters and step-up transformers, facilitating the flow of generated electricity to the grid. Wind farms also rely on MV cables to transmit power from turbines to substations. These cables handle the variable output from renewable sources while maintaining reliability and minimizing energy loss.
Public transportation systems, including metro lines and electric trains, require reliable power delivery to operate smoothly. MV cables provide the necessary electrical connections between substations and transit infrastructure. Airports, hospitals, and data centers also use MV cables for their power distribution needs, ensuring uninterrupted service in critical environments.
MV cables are engineered to withstand tough outdoor conditions. They resist moisture, UV radiation, chemicals, and mechanical stresses, making them suitable for underground, duct, and direct burial installations. Their insulation and protective layers prevent damage from environmental hazards, ensuring long-term performance. This resilience reduces maintenance needs and downtime, which is crucial for industries that demand continuous power supply.
Tip: When selecting MV power cables, always consider the specific environmental challenges of your project site to ensure durability and reduce future maintenance costs.
Medium Voltage (MV) power cables are designed to safely and efficiently carry electricity at voltages between 1kV and 35kV. Their construction involves multiple layers, each serving a specific purpose to ensure durability, electrical performance, and safety.

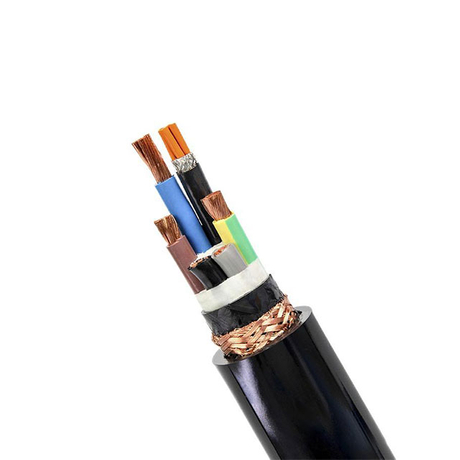

At the heart of an MV cable is the conductor, which carries the electrical current. Surrounding the conductor is the insulation layer, which prevents electrical leakage and protects against short circuits. Outside the insulation, several protective layers shield the cable from mechanical damage, moisture, and environmental hazards.
The conductor typically consists of either copper or aluminum:
Copper offers excellent electrical conductivity and mechanical strength. It is highly durable but heavier and more expensive.
Aluminum is lighter and more cost-effective but has lower conductivity than copper. It is often used in larger cable sizes where weight savings are important.
Both materials come in stranded forms to provide flexibility and ease of installation.
The insulation layer is usually made from one of two materials:
XLPE (Cross-linked Polyethylene): Known for high thermal resistance, low dielectric loss, and excellent mechanical properties. It can operate continuously at temperatures up to 90°C and withstand short circuits up to 250°C.
EPR (Ethylene Propylene Rubber): Offers good flexibility and heat resistance, suitable for cables requiring higher elasticity.
Both materials ensure safe insulation and long service life.
MV cables include several specialized layers to manage electrical fields and provide protection:
Conductor Screen: A semiconductive layer around the conductor that smooths the electric field, reducing stress concentration.
Insulation Screen: Another semiconductive layer over the insulation that contains the electric field and prevents interference.
Metallic Screen: Usually copper wire or tape wrapped around the insulation screen. It serves as a grounding path and shields against electromagnetic interference.
Outer Sheath: The external protective layer made from materials like PVC, PE, or LSZH. It guards against moisture, chemicals, UV radiation, and mechanical damage.
Depending on the installation environment, MV cables may include additional features:
Armoring: Steel wire or aluminum wire armor provides mechanical protection against impact or rodent damage, especially in underground or harsh outdoor settings.
Water Blocking: Swellable tapes or powders inside the cable prevent water ingress, crucial for underground or wet locations.
Inner Bedding: A layer between insulation and armor that cushions the core and enhances mechanical stability.
These features improve cable longevity and reliability in demanding conditions.
Tip: When selecting MV power cables, carefully consider conductor material and insulation type based on your project’s electrical load, environmental conditions, and budget to optimize performance and durability.
Medium Voltage (MV) power cables typically operate within the voltage range of 1kV to 35kV. This range bridges the gap between low voltage and high voltage cables, making MV cables essential for many power distribution systems. Some manufacturers may produce MV cables rated slightly above 35kV, sometimes up to 69kV, depending on the application and regional standards. However, the most common voltage ratings fall between 1kV and 35kV, covering a wide variety of industrial, commercial, and infrastructure needs.
Power cables are classified based on the voltage they carry:
Low Voltage (LV): Up to 1kV, used for household wiring, small commercial buildings, and light industrial loads.
Medium Voltage (MV): From 1kV to 35kV (sometimes up to 69kV), ideal for distribution networks, industrial plants, and renewable energy systems.
High Voltage (HV): From about 35kV to 150kV, used for longer-distance transmission and large substations.
Extra High Voltage (EHV): Typically from 150kV to 400kV, for bulk power transmission over long distances.
Ultra High Voltage (UHV): Above 400kV, reserved for very long-distance, high-capacity transmission lines.
Each category serves different roles in the power grid, with increasing insulation and construction complexity as voltage rises.
| Cable Type | Typical Voltage Range |
|---|---|
| Low Voltage (LV) | Up to 1kV |
| Medium Voltage (MV) | 1kV to 35kV (up to 69kV) |
| High Voltage (HV) | 36kV to 150kV |
| Extra High Voltage (EHV) | 150kV to 400kV |
| Ultra High Voltage (UHV) | Above 400kV |
These ranges can vary slightly depending on regional standards and manufacturer specifications.
There is some overlap in voltage ratings between MV and HV cables, especially in the 30kV to 40kV range. This overlap occurs because different standards and industries may classify cables differently. For example, a cable rated at 36kV could be considered either a high-end MV cable or a low-end HV cable depending on the context.
The main distinctions lie in design requirements and testing standards:
MV cables generally have insulation and construction optimized for distribution networks, often focusing on flexibility and ease of installation.
HV cables require thicker insulation, more robust shielding, and stricter testing to handle higher electrical stresses and longer transmission distances.
Understanding these distinctions helps ensure the right cable is chosen for safety, efficiency, and longevity.
Tip: Always verify the exact voltage rating and classification of a cable before selection to ensure compatibility with your electrical system and compliance with local standards.
Medium Voltage (MV) power cables must meet strict standards and certifications to ensure safety, reliability, and performance. Different regions and industries follow specific guidelines, but all aim to guarantee that cables can handle electrical stresses and environmental challenges.
The International Electrotechnical Commission (IEC) sets widely accepted global standards for MV cables. IEC 60502-2 is the main standard covering power cables rated from 1kV to 36kV. It defines requirements for construction, testing, and performance, including insulation materials, conductor types, and shielding.
The Institute of Electrical and Electronics Engineers (IEEE) provides standards primarily used in North America. IEEE standards cover testing methods, flame resistance, and electrical characteristics to ensure safe operation in various environments.
British Standards (BS) are common in the UK and other countries. BS EN 50525 series aligns closely with IEC standards but may include additional regional requirements.
In North America, UL 1072 governs MV cable safety and performance. UL-certified cables undergo rigorous testing for electrical, mechanical, and environmental properties. UL standards include classifications like MV-90 and MV-105, denoting thermal ratings of 90°C and 105°C continuous operation.
The Standards Australia and Standards New Zealand (SAA) certification applies to Oceania. SAA standards (AS/NZS 1429.1) cover construction, insulation types (XLPE or EPR), armoring, and water blocking. These cables are designed for harsh outdoor environments, including termite-resistant sheaths.
Other regions may follow standards like CSA (Canada), VDE (Germany), or GB (China), each with specific testing and certification processes.
Compliance with these standards ensures MV cables:
Handle rated voltages safely without insulation failure.
Resist environmental factors such as moisture, UV exposure, chemicals, and mechanical stress.
Perform reliably under thermal loads and short-circuit conditions.
Meet fire safety and flame retardance requirements.
Provide consistent quality and durability across batches.
Using certified cables reduces risks of power outages, equipment damage, and safety hazards. It also helps meet legal and insurance requirements.
Standards specify tests such as:
Dielectric tests: Verify insulation withstand voltage.
Partial discharge tests: Detect insulation defects.
Thermal aging: Assess cable performance after prolonged heat exposure.
Flame retardance: Ensure cables limit fire spread.
Mechanical tests: Check tensile strength, bending radius, and impact resistance.
Water penetration tests: Confirm effectiveness of water blocking.
These tests simulate real-world conditions to certify cable safety and longevity.
Tip: Always choose MV power cables certified to relevant international or regional standards to ensure compliance, safety, and optimal performance for your project’s specific environment.
Proper installation and routing of Medium Voltage (MV) power cables are crucial for ensuring efficient power delivery, minimizing energy loss, and extending cable lifespan. Whether in solar PV plants or other industrial and infrastructure projects, following best practices helps reduce operational costs and downtime.
In solar PV plants, MV cables connect inverters, transformers, and substations. Routing cables along the shortest, most direct paths reduces cable length and energy loss. Group cables carefully to avoid electromagnetic interference and simplify maintenance. Use cable trays, ducts, or underground conduits to protect cables from physical damage and environmental exposure.
In other installations, plan routes to avoid sharp bends and high mechanical stress areas. Maintain minimum bending radius as specified by manufacturers to prevent insulation damage. Label cables clearly for easy identification during inspections or repairs.
Energy loss in MV cables mainly occurs due to resistance in the conductor. To minimize losses:
Choose conductors sized appropriately for the load.
Keep cable runs as short as possible.
Avoid unnecessary bends or loops.
Use cables with high-quality insulation to reduce dielectric losses.
Optimizing cable routing during design phase can significantly improve system efficiency and reduce operational costs.
Regular inspections help detect early signs of wear, moisture ingress, or mechanical damage. Use infrared thermography to identify hot spots indicating poor connections or overloads. Implement preventive maintenance schedules and keep spare cables and components on hand for quick replacement.
For repairs, use certified connectors and follow manufacturer guidelines. Plan maintenance during low-demand periods to minimize impact on operations. Employ trained technicians familiar with MV cable systems to ensure safe and effective work.
MV cables often face harsh environments like underground moisture, UV exposure, chemicals, and mechanical stress. Protective measures include:
Using armoured cables in areas prone to rodent damage or mechanical impact.
Applying water-blocking materials to prevent moisture ingress.
Selecting outer sheaths resistant to UV and chemicals.
Installing cables in conduits or ducts to shield from physical damage.
Consider soil conditions, temperature variations, and potential chemical exposure during installation planning. Proper grounding and bonding also protect cables from electrical faults and lightning strikes.
Tip: Always plan MV cable routes early in your project to minimize length, avoid environmental hazards, and facilitate future maintenance access.
Medium Voltage (MV) power cables offer several benefits that make them ideal for many electrical systems. However, like any technology, they have some limitations to consider before selection and installation.
MV cables are designed to transmit electricity efficiently over medium distances, minimizing energy loss. Their conductors, usually copper or aluminum, provide excellent electrical conductivity. The insulation materials like XLPE or EPR ensure stable performance even under high thermal stress. These cables are built tough to last for decades, resisting mechanical damage and electrical wear.
Durability is key for MV cables used outdoors or underground. They withstand harsh environments including moisture, UV radiation, chemicals, and mechanical impacts. This resilience reduces maintenance needs and prevents costly downtime. Their robust construction supports continuous operation in industrial plants, renewable energy projects, and infrastructure networks.
Safety is paramount in MV cable design. Multiple insulation and shielding layers protect against electrical faults and reduce the risk of short circuits. The metallic screens provide grounding paths and shield against electromagnetic interference, improving system reliability.
MV cables often include armoring for mechanical protection, especially in areas prone to rodent damage or heavy traffic. Water-blocking layers prevent moisture ingress, crucial for underground or wet locations. Outer sheaths resist UV rays, chemicals, and abrasion, safeguarding cables in tough outdoor settings.
These safety features ensure MV cables operate reliably without posing hazards to people or equipment.
While MV cables offer many advantages, they are generally more expensive than low voltage cables. The cost of materials like copper and specialized insulation adds up. Installation requires skilled technicians and proper equipment to handle the cable weight and maintain bending radius limits.
Complex routing and protective measures increase labor and project time. Armoring and water-blocking features add to the price but are necessary for durability in harsh environments. Maintenance costs are lower over time due to cable longevity, but initial investment and installation complexity can be significant.
The MV cable industry is evolving with new technologies that enhance performance and monitoring. Smart cables embed sensors to track temperature, load, and insulation condition in real time. This allows predictive maintenance and reduces unexpected failures.
Improved shielding materials reduce electromagnetic interference and improve fault detection. High-temperature XLPE insulation variants enable cables to operate safely at higher loads. These innovations extend cable life, improve safety, and optimize power distribution systems.
Tip: Consider the total cost of ownership, including installation and maintenance, when selecting MV cables to ensure the best balance of performance, safety, and budget for your project.
Medium Voltage (MV) power cables are evolving rapidly to meet growing demands for efficiency, durability, and smart operation. Innovations focus on materials, monitoring, and adaptability to new energy systems.
XLPE insulation has long been the standard for MV cables due to its excellent thermal and electrical properties. New enhanced XLPE formulations improve heat resistance and mechanical strength, allowing cables to operate safely at higher temperatures. High-temperature cables can handle continuous loads beyond 90°C, sometimes up to 105°C or more, reducing the risk of overheating and extending service life. These improvements support higher power densities and more compact cable designs, which are crucial for modern industrial and renewable energy installations.
The integration of smart sensors into MV cables marks a significant advancement. These sensors monitor temperature, electrical load, partial discharges, and mechanical stresses in real time. Smart cables provide early warnings of potential failures, enabling predictive maintenance instead of reactive repairs. This reduces downtime and maintenance costs. Data from smart cables also helps optimize power distribution and detect faults faster, improving grid reliability. Such technology is particularly valuable in critical infrastructure and renewable energy projects where continuous operation is essential.
Material science breakthroughs are enhancing MV cable performance. New insulating compounds offer better resistance to moisture, chemicals, and UV radiation, increasing durability in harsh environments. Improved metallic shielding materials reduce electromagnetic interference and enhance fault current handling. Armoring materials are becoming lighter yet stronger, easing installation without sacrificing protection. Water-blocking technologies are more effective, preventing moisture ingress even in challenging underground or wet conditions. These advances collectively boost cable lifespan and reliability, lowering total cost of ownership.
Innovations in MV cable technology directly benefit renewable energy and infrastructure sectors. Enhanced cables support higher voltages and currents needed for large solar farms and wind power plants. Smart monitoring enables efficient integration of variable renewable sources by ensuring stable and safe power flow. Improved durability reduces maintenance in remote or harsh locations, such as offshore wind farms or desert solar arrays. Infrastructure projects like electric transit systems and smart grids also gain from these technologies, achieving better performance, safety, and cost efficiency.
Tip: When planning new installations, consider MV cables with advanced insulation and smart monitoring features to future-proof your system and reduce long-term operational risks.
Medium Voltage (MV) power cables efficiently transmit electricity in various industries and renewable energy projects. Choosing the right MV cable ensures durability, safety, and optimal performance for specific environments. These cables play a crucial role in modern electrical systems, supporting stable power distribution and smart monitoring technologies. Hangzhou Kesheng Packaging Material Co., Ltd. offers high-quality MV power cables that combine advanced materials and reliable construction, providing lasting value and enhanced safety for diverse applications.
A: An MV Power Cable is a medium voltage cable designed to transmit electricity safely and efficiently at voltages between 1kV and 35kV, commonly used in industrial, commercial, and infrastructure applications.
A: MV Power Cables consist of a conductor (copper or aluminum), insulation (XLPE or EPR), multiple protective layers including metallic screens, and an outer sheath for durability and safety.
A: MV Power Cables handle higher voltages with better efficiency and durability, making them suitable for power distribution in demanding environments like renewable energy plants and industrial sites.
A: Cost depends on conductor material, insulation type, armoring, length, and installation complexity, with copper and advanced insulation increasing price but enhancing performance.
A: They efficiently transmit power from solar and wind sources, withstand harsh conditions, and reduce energy loss, ensuring reliable integration into the grid.
A: Regular inspection, infrared thermography for hot spots, checking for moisture ingress, and ensuring proper grounding help detect and resolve common MV cable problems.
