The demand for global grid modernization is accelerating rapidly. Project developers face increasing pressure to integrate large renewable energy loads across vast geographic distances. This shift exposes a critical engineering bottleneck. Engineers must minimize electrical line losses while transmitting massive power loads over hundreds of kilometers. Inferior cabling solutions lead to unacceptable energy dissipation and grid instability. You need reliable infrastructure to achieve these transmission goals.
This guide serves as your comprehensive technical and commercial evaluation framework. It details how to select, specify, and procure an Ultra High Voltage Cable effectively. You will discover practical methods to ensure project viability. We will also cover essential strategies for maintaining regulatory compliance. By understanding these design architectures, you can future-proof your utility infrastructure. We break down insulation materials, installation risks, and environmental safeguards to help you make informed decisions.
Transitioning to 500kV+ transmission drastically reduces line losses but introduces complex thermal, mechanical, and logistical challenges.
The choice between UHVAC and UHVDC depends heavily on route length, interconnectivity requirements, and converter station capital expenditures (CapEx).
Evaluating cable insulation (e.g., XLPE vs. Mass Impregnated) must align directly with the project’s specific environmental constraints (subsea, underground, or overhead transitions).
Vendor shortlisting requires verifying independent type-testing, EMF compliance track records, and end-to-end installation logistics capabilities.
Traditional high-voltage transmission networks struggle across long distances. They suffer from severe voltage drops and excessive right-of-way requirements. Legacy systems also trigger grid instability when managing fluctuating renewable energy inputs. Planners must rethink their approach to bulk power movement.
A successful deployment requires strict adherence to predefined success criteria. You must establish specific transmission capacity targets, often measured in gigawatts (GW). Acceptable loss percentages per 100 kilometers dictate overall system efficiency. A robust lifecycle span ensures the infrastructure remains viable for decades.
Utility operators face a distinct cost-benefit reality. Upfront infrastructure costs remain undeniably high. You must fund massive transmission towers, specialized substations, and complex laying operations. However, these expenses generate significant long-term operational savings. Reduced transmission losses directly translate to higher revenue. They offset initial investments over the operational lifespan.
Define capacity targets clearly before requesting vendor bids.
Conduct exhaustive route surveys to identify geographic hurdles early.
Map out intermediate drop-off points to determine future expansion needs.
Selecting the right transmission architecture dictates your entire project scope. You must evaluate Alternating Current (AC) and Direct Current (DC) systems objectively. Each technology serves entirely different grid topologies.
UHVAC networks excel in highly interconnected grids. They accommodate multiple intermediate drop-off points easily. This makes them ideal for domestic grid expansions. You can step voltages up or down using standard transformers.
However, UHVAC systems face severe physical limitations. Capacitive charging currents restrict their effectiveness underground. They also severely limit submarine cable lengths. You must install reactive compensation stations at regular intervals. This adds substantial infrastructure footprint and complexity to the project.
UHVDC provides the ultimate solution for point-to-point bulk power delivery. Developers use it frequently to connect offshore wind farms to inland grids. It excels over extremely long geographic distances.
The advantages are significant. A UHVDC Transmission Cable requires fewer conductors than AC equivalents. It completely eliminates reactive power losses during transit. You achieve virtually unlimited transmission distances underwater.
These benefits come at a price. Terminal converter stations demand massive capital expenditures (CapEx). You must calculate a minimum break-even distance. Only then can you justify the upfront converter costs against the saved transmission losses.
Feature | UHVAC | UHVDC |
|---|---|---|
Best Application | Highly interconnected terrestrial grids | Long-distance, point-to-point delivery |
Conductor Requirement | Three phases (more material) | Two poles (less material) |
Reactive Power Losses | High (requires compensation stations) | None |
Converter Station CapEx | Low (standard transformers) | Very High (complex converter stations) |
Submarine Viability | Limited (short distances) | Excellent (unlimited distances) |

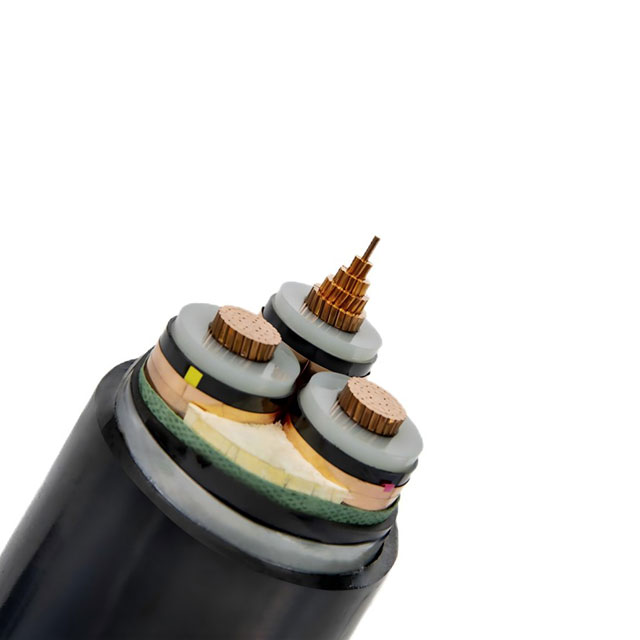

Specifying a high-capacity link requires rigorous engineering analysis. You must evaluate insulation technologies, conductor designs, and mechanical protection. These choices dictate the reliability of a 500kV Cable.
Cross-linked Polyethylene (XLPE) dominates modern terrestrial installations. Engineers favor XLPE for its impressive operating temperature limits. It handles continuous heavy loads reliably. The material also offers a maintenance-free profile. Jointing XLPE remains easier compared to older technologies.
Mass Impregnated (MI) and Polypropylene Laminated Paper (PPLP) maintain strong relevance today. They boast incredible legacy reliability. You will see MI cables primarily in extreme deep-water applications. They handle ultra-high DC voltages exceptionally well where XLPE reaches its chemical limits.
You must build a decision matrix to choose between copper and aluminum conductors. Copper delivers superior conductivity. It allows for a smaller overall cable diameter. However, copper increases the weight substantially.
Aluminum offers a lighter, more cost-effective alternative. It eases cable drum logistics and reduces structural support requirements. Yet, aluminum requires a larger cross-section to match copper's ampacity.
Engineers often deploy Milliken (segmental) conductor designs for AC applications. This specialized construction mitigates the skin effect. It forces current to distribute evenly across the conductor. You achieve maximum efficiency during heavy load transfers.
Harsh environments demand robust mechanical protection. You must assess radial water barriers carefully. Lead sheaths provide impenetrable moisture blocking. They suit deep subsea deployments perfectly. Aluminum laminates offer a lighter alternative for direct-buried underground environments.

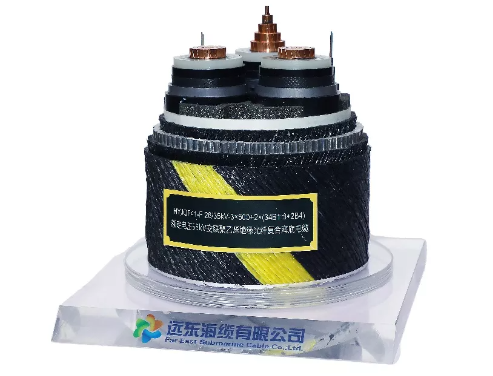

Tensile armor protects the assembly from physical trauma. Subsea installations require single or double-wire armor. This steel wire wrapping prevents the cable from snapping during marine laying operations.
Public scrutiny heavily influences transmission infrastructure approvals. Developers must navigate complex environmental and safety regulations. Proactive compliance ensures your project avoids costly legal delays.
Public safety concerns regarding electromagnetic fields remain high. You must address these fears using strict international radiation limits. The International Commission on Non-Ionizing Radiation Protection (ICNIRP) provides the definitive global guidelines.
A properly installed UHV Cable configuration naturally shields electric fields. The metallic sheaths and earth ground the electrical interference completely. However, magnetic fields still penetrate the surrounding soil.
Engineers mitigate magnetic fields through specific trenching geometries. Placing phase conductors in a close trefoil formation cancels out magnetic emissions. Deeper burial depths also reduce surface-level exposure significantly.
Acquiring Right-of-Way represents a major project bottleneck. You should compare the footprint of UHV transmission against multiple lower-voltage parallel lines. A single UHV corridor carries vastly more power. This reduces the total land area required for utility easements.
Environmental Impact Assessments (EIA) govern the permitting process. Regulators demand comprehensive thermal soil dissipation studies. Underground cables heat the surrounding earth. You must prove this heat will not damage local root systems or dry out aquifers. Subsea projects require similar assessments to prevent unacceptable seabed disruption.
Theoretical designs often clash against physical installation realities. Moving and installing massive infrastructure components introduces severe operational risks. You must plan for these hurdles years in advance.
Transporting massive cable drums presents an immediate physical constraint. A single drum can weigh over 100 tons. Navigating these behemoths to remote or rugged terrains requires specialized transport vehicles.
You must respect the minimum bending radius at all times. Bending the cable too sharply shatters the XLPE insulation matrix. Route planners must widen rural roads and reinforce local bridges before transport begins.
Jointing represents the most critical failure point in any transmission network. Contamination during the splicing process guarantees future dielectric breakdown. Jointers must operate inside temporary clean-room environments in the field.
You must hire highly certified jointers. They manage humidity, dust, and temperature strictly during the jointing process. A single microscopic dust particle will cause a catastrophic high-voltage failure.
Rigorous testing protocols validate the installation's integrity. Never skip these mandatory verification steps.
Factory Acceptance Testing (FAT): Manufacturers perform routine and sample tests before the drum leaves the facility. They verify conductor resistance and insulation thickness.
Site Acceptance Testing (SAT): Engineers conduct post-installation checks. They verify joint integrity and outer sheath condition.
High-Voltage Resonant Testing: The final hurdle before energization. Technicians apply an over-voltage stress test. This exposes any latent defects introduced during installation or jointing.
Procuring raw materials and specialized manufacturing takes time. Choosing the right vendor mitigates supply chain risks and ensures technical compliance. You need a structured framework to evaluate potential partners.
Look for verifiable case studies. The vendor must demonstrate successful 500kV+ installations operating for at least five years. These reference projects should match your specific environmental conditions. A supplier succeeding in arid deserts might fail in deep-water marine environments.
Demand proof of independent certification. Internal laboratory results mean very little. Require compliance certificates from recognized international bodies.
AC Systems: Insist on IEC 62067 compliance.
DC Systems: Require CIGRE TB 496 certification.
These pre-qualification tests simulate decades of thermal and electrical stress. They prove the core design fundamentally works.
You must evaluate the vendor's service model. Supply-only contracts look cheaper initially. However, they create dangerous liability gaps. If a cable fails, the supplier blames the installer. The installer blames the supplier.
Evaluate whether the vendor provides end-to-end EPC (Engineering, Procurement, Construction) services. A turnkey approach mitigates warranty disputes entirely. The manufacturer assumes full responsibility for production, laying, and final testing.
Assess the vendor's raw material sourcing practices. Global shortages impact delivery schedules severely. Trace their access to high-grade copper and ultra-clean XLPE compounds. Transparent supply chains allow you to gauge lead-time reliability accurately.
Specifying an ultra high voltage cable remains a complex balancing act. You must weigh transmission capacity targets against geographic constraints and lifecycle ROI. Proper architectural choices upfront prevent crippling grid inefficiencies later. Your decision between UHVAC and UHVDC shapes the entire operational future of the network.
We advise decision-makers to prioritize early vendor engagement. Conduct comprehensive route surveys before finalizing your technical specifications. This proactive approach identifies logistical bottlenecks before they derail your construction schedule.
Take action on your grid expansion today. Contact an engineering consultant to discuss your specific load requirements. Download technical specification whitepapers from certified manufacturers. Request a formal project feasibility consultation to align your grid modernization goals safely and effectively.
A: Capacitive charging currents severely limit UHVAC underground lengths. The cable acts like a giant capacitor, consuming current just to remain energized. Without reactive compensation stations, continuous uncompensated runs typically reach their limit around 40 to 60 kilometers.
A: HVDC does not suffer from continuous reactive power losses. The direct current flow eliminates capacitive charging issues entirely. This fundamental advantage allows for virtually unlimited transmission distances underwater, making it perfect for connecting distant offshore wind farms.
A: Lead times stretch significantly due to specialized manufacturing requirements. You should anticipate realistic timelines of 12 to 24 months. Current raw material availability, custom engineering demands, and rigorous factory testing schedules all dictate this prolonged production cycle.
A: Manufacturers conduct rigorous Factory Acceptance Testing (FAT). They perform routine testing on every drum and destructive sample testing on specific batches. Furthermore, pre-qualification (PQ) tests simulate decades of extreme thermal and electrical stress to validate the core design.
