Utility grids face unprecedented congestion today. The rapid integration of renewable energy sources strains legacy systems heavily. Surging electrification demands push older infrastructure beyond safe operating limits. Policy initiatives outline ambitious modernization strategies for tomorrow. Yet, physical bottlenecks threaten these macro-level goals right now. Right-of-way (ROW) constraints delay vital expansion projects indefinitely. Aging infrastructure limits how much power utilities can safely distribute.
Expanding capacity efficiently requires a focused approach to hardware. You must select the right conductor technology. Operators need solutions balancing immediate capital expenditures with long-term reliability. Thermal capacity and strict regulatory compliance demand equal attention. Selecting an advanced Power Transmission Cable solves many physical roadblocks. You will learn how modern conductor choices bypass permitting delays. We will explore key criteria for matching hardware to peak load profiles. You will also discover proven strategies for mitigating procurement risks.
Advanced power transmission cables (like HTLS) allow utilities to double line capacity on existing structures, bypassing lengthy ROW permitting.
Evaluating a utility cable requires analyzing the total cost of ownership, factoring in installation complexity, line loss reductions, and long-term maintenance.
The choice between reconductoring existing infrastructure versus building new transmission lines dictates the specific grid cable architecture required.
Procurement decisions must account for current supply chain lead times, regional regulatory compliance (e.g., NERC, FERC, IEEE standards), and environmental operating conditions.
Utility operators face massive hurdles today. Acquiring new land takes nearly a decade. Right-of-Way (ROW) permitting stalls critical upgrades constantly. Environmental impact studies delay construction schedules significantly. Local zoning boards often reject new tower proposals. These bureaucratic delays threaten local energy reliability directly. You cannot simply build your way out of congestion quickly.
Renewable energy projects complicate this further. Wind and solar farms sit far from urban load centers. Moving this power requires long-distance, high-capacity infrastructure. The grid must transport bulk energy across hundreds of miles. Aging legacy systems cannot handle these immense loads safely. Older lines suffer from severe thermal limits. Pushing too much current causes dangerous cable sag. Sagging lines create severe wildfire and flashover risks.
You need a faster path to grid expansion. Changing the physical wire is the most viable control variable. Selecting an advanced Transmission Cable offers immediate relief. Utilities can bypass slow land acquisition completely. Upgrading wires on existing towers increases capacity quickly. You utilize existing corridors to support modern power demands.
Common Mistake: Do not assume legacy towers can support any new wire. Engineers must verify structural limits meticulously. Adding heavier conductors to rusted towers causes catastrophic failures during winter storms.
You must match conductor types to specific project goals. We evaluate three primary categories below. Each offers distinct advantages for grid modernization.

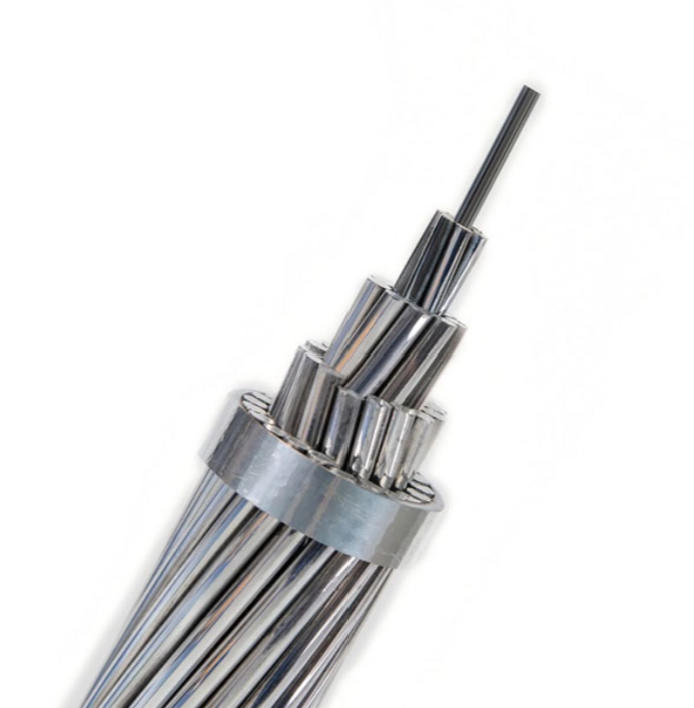

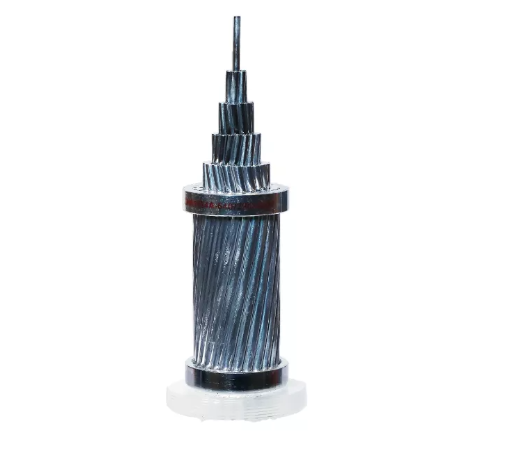

Aluminum Conductor Steel Reinforced (ACSR) dominates older grids. Operators use these for standard expansion projects. They work well when new ROW is accessible. Engineers trust their predictable performance metrics. Routine maintenance protocols are widely understood globally.
They offer lower initial capital expenditures. However, they carry significant physical trade-offs. Steel cores make them incredibly heavy. They suffer from high thermal sag under heavy loads. This limits your ability to upgrade existing towers. Pushing more current requires building taller, stronger structures.
HTLS technology transforms reconductoring projects entirely. Manufacturers replace steel with advanced composite cores. Carbon fiber provides immense tensile strength. They weigh significantly less than conventional steel wires. This weight reduction relieves stress on aging towers.
You can double line capacity on current structures. They resist sagging even at extreme operating temperatures. This bypasses lengthy permitting requirements completely. You reuse existing right-of-way corridors. They require higher upfront material investments. Yet, faster installation times often offset this initial price easily.
Urban expansions require different approaches. Cross-linked polyethylene (XLPE) cables serve these distinct needs. You deploy them in environmentally sensitive areas. They also protect grids in extreme weather zones. The underground environment eliminates wind and ice loading risks.
Undergrounding requires substantially higher installation budgets. Trenching through urban areas adds massive complexity. Heat dissipates poorly through soil and conduit. You must engineer specialized thermal backfill materials. However, they provide superior weather resilience. They also meet strict aesthetic and zoning compliance easily.
Table: Transmission Cable Technology Comparison
Technology Type | Primary Use Case | Capacity Upgrade Potential | Installation Complexity |
|---|---|---|---|
ACSR / ACSS | New line construction with accessible ROW | Standard baseline capacity | Low (Standard equipment) |
HTLS | Reconductoring existing towers | Up to 2x baseline capacity | Medium (Specialized handling) |
XLPE Underground | Urban zones and extreme weather areas | High (Dependent on thermal backfill) | Very High (Trenching required) |
Choosing the right Utility Cable demands rigorous analysis. You cannot rely on upfront price alone. Engineers must evaluate specific operational metrics carefully. Proper evaluation prevents expensive retrofits later.
Capacity vs. Load Profiles: Match ampacity ratings to projected peak loads. Renewable surges require high thermal headroom. You must plan for future sector expansion. Do not size cables solely for current demand.
Line Losses and Operating Costs (Opex): Electrical resistance generates heat. Heat represents wasted energy. Highly conductive materials minimize this wasteful resistance. Minimizing line losses improves baseline efficiency. You deliver more power directly to consumers. Lower operating costs offset higher initial procurement prices over time.
Environmental Resilience: Regional stressors degrade infrastructure rapidly. You must evaluate materials against local threats. Coastal regions demand high corrosion resistance. Northern areas require high ice-loading tolerances. High wind corridors necessitate superior tensile strength.
Hardware Compatibility: Advanced conductors require specific handling. Assess your current suspension hardware thoroughly. Specialized splicing or dead-ends may be necessary. Mismatched fittings cause catastrophic failures under tension. Field crews often require specialized installation training.
Best Practice: Always conduct a comprehensive hardware audit before ordering. Ensure your existing dead-ends match the exact diameter of the new composite core. Do not improvise connections in the field.
Grid modernization follows two main paths. You either upgrade existing lines or build anew. Each strategy presents unique risks and rewards. You must match the strategy to your timeline constraints.
This remains the fastest capacity upgrade strategy available. Utilities swap old wires for advanced conductors. You reuse the existing towers and land. This avoids years of environmental reviews.
Follow these critical steps during reconductoring:
Calculate weight-to-tension ratios carefully for all span lengths.
Verify existing towers can support maximum regional ice loads.
Inspect legacy structures for hidden corrosion or micro-fractures.
Train linemen on proper composite core handling techniques.
What to watch out for: Unforeseen structural degradation ruins project budgets. You might discover rusted tower legs during installation. Always perform non-destructive testing on legacy assets first.
Building new lines offers total design freedom. Engineers optimize span lengths and tower heights perfectly. You can utilize heavier, highly conductive traditional wires. This approach suits massive interstate transmission projects.
The primary risk involves extended project timelines. Environmental impact studies drag on for years. Acquiring new land blocks progress constantly. Community opposition halts construction frequently. You must weigh these delays against long-term capacity needs.
Purchasing advanced infrastructure carries substantial risk. Project managers must validate their supply chains thoroughly. A reliable Grid Cable requires exacting manufacturing standards. You cannot afford material defects during installation.
Audit manufacturer production capacities early. Verify their historical lead times across multiple projects. Trace raw material sourcing carefully. Aluminum, steel, and composite availability fluctuate wildly. Shortages derail construction schedules instantly. Ensure your vendor has redundant material suppliers.
Never compromise on regulatory standards. Ensure products meet IEEE and IEC requirements strictly. The North American Electric Reliability Corporation (NERC) mandates strict performance criteria. Local utility commissions also enforce distinct mandates. Request certified lab reports before shortlisting vendors. You must verify high-temperature performance independently.
Installation requires ongoing manufacturer partnerships. Advanced composite cores demand precise handling. Over-bending carbon cores causes invisible fractures. Engineering support during stringing prevents costly damages. Ensure your vendor provides onsite supervision during initial pulls. Verify the warranty covers both materials and operational performance.
Expanding utility grids requires overcoming physical and regulatory hurdles. Strategic conductor selection solves many permitting delays directly. Swapping old wires for advanced conductors increases capacity rapidly. This approach bypasses years of tedious land acquisition.
There is no universal solution for every utility. You must root decisions in strict technical evaluations. Assess ROW availability, local weather threats, and future capacity targets. Balance immediate capital expenditures against long-term operational efficiency.
Project engineers should act proactively. Request technical spec sheets from certified manufacturers today. Run capacity simulation data for your specific region. Initiate a pilot assessment to validate field performance. Modernizing the grid starts with selecting the right wire.
A: Distribution wires carry lower voltages directly to consumers. They navigate local neighborhoods over short distances. Power transmission cables transport massive bulk energy. They operate at extreme high voltages over long distances. They bridge remote generation sites directly to urban substations.
A: HTLS conductors typically deliver 1.5 to 2 times more capacity. They achieve this safely under similar thermal conditions. They operate at much higher temperatures without sagging. However, you must verify tower structural limits first. High-capacity flows still depend on robust supporting infrastructure.
A: Trenching through urban areas drives up costs significantly. Managing heat dissipation requires expensive thermal backfill materials. You also need highly specialized splicing techniques. Finally, complex fault-finding hardware adds to the initial capital expenditure. These factors make undergrounding more expensive than overhead lines.
A: Complex manufacturing processes create extended lead times. Industry averages often exceed six to twelve months. Delays in raw material sourcing push timelines further. Early procurement engagement is absolutely critical. Planners must order materials long before securing final construction permits.
